  15. Push Button with Transmitter, 22 mm, Green

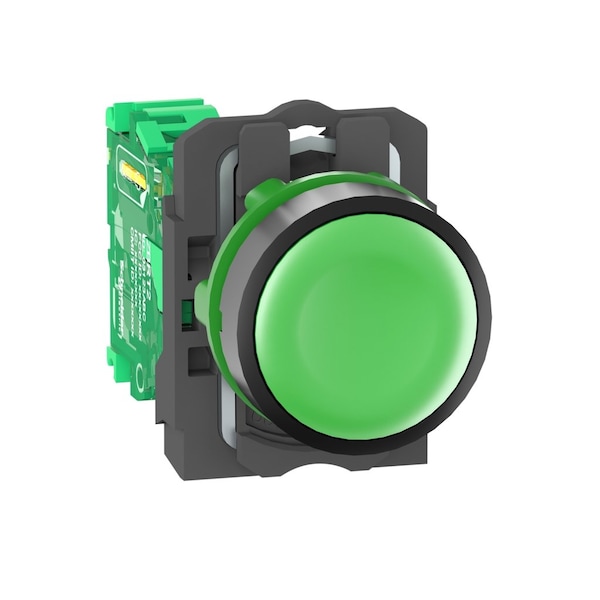

Schneider Electric Push Button with Transmitter, 22 mm, Green ZB5RTA3 - main

Push Button with Transmitter, 22 mm, Green

  • Mfr # ZB5RTA3

  • Zoro # G4149451

product price: $125.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5RTA3
Zoro #
G4149451
UPC #
785901695141
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Height
1.3 in
Length
2.05 in
Width
3.39 in
Size
22 mm
Length (Straight Wireway)
2.05 in
Cad Overall Height
41.5 mm
Mounting Diameter
22 mm
Cad Overall Width
30 mm
Embedding Depth
42 mm
Cad Overall Depth
43 mm
Bandwidth
5-5 MHz
Overall Height
1.62 in
Overall Width
1.17 in
Overall Depth
2.05 in
Manufacturer Warranty Length
18 mo

Details

Item
Wireless Push Button Transmitter
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Plastic
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
Material
Plastic
NEMA Rating
12
Color
Green
Number of Operators
1
Legend Markings
No Legend
Type of Operator
Flush Push Button
IP Rating
IP30
Series
XB5R
Bezel Material
dark grey plastic
Legend
None
Max Power Consumption In W
1 mW
Operator Profile
green flush
Fixing Collar Material
plastic
Ambient Air Temperature For Storage
-40-70°C
Device Short Name
XB5R
Level Or Class
5M00G7W
Electromagnetic Compatibility
electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80 to 3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000 to 6000 MHz, distance = 20 m) IEC 61000-4-3
Relative Humidity
95-95 % -40-70°C without condensation
Antenna Type
omnidirectional
Number Of Channels
16
Mechanical Durability
1000000 cycles
Operating Force
10 N C/O changing electrical state
Acquisition Time
2 ms
Transmission Frequency
2405 MHz
Modulation Technique
O-QPSK
Vibration Resistance
5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Communication Port Protocol
Zigbee green power 2.4 GHz IEEE 802.15.4
Maximum Sensing Distance
100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Mechanical Robustness
free fall resistance 1000 mm EN/IEC 60068-2-32
Fixing Mode
fixing nut beneath head 2-2.4 N.m
Radio Agreement
ANATEL || ARIB T66 || FCC || ICASA || RSS
Electrical Composition Code
PW1
Response Time
< 2 ms
Operating Travel
4.3 mm total travel)
Ik Degree Of Protection
IK03 IEC 50102
Ambient Air Temperature For Operation
-40-70°C
Antenna Gain
0 dBi
Emission Power
3 mW
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Shock Resistance
25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type
wireless and batteryless transmitter
Product Certifications
BT 2006/95/EC || CCC || UL || GOST || C-tick || CSA
Ip Degree Of Protection
IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
Shape Of Signaling Unit Head
round
Operator Material
Plastic
Resistance Properties
Shock Resistant, Vibration Resistant
NEMA Enclosure Rating
12
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Mechanical Operating Durability
1,000,000

Description

Wireless Push Button Transmitter, Color Green, Action Momentary, Material Plastic, NEMA Rating 12, IP Rating IP30, Number of Operators 1, Size 22 mm, Type of Operator Flush Push Button, Height 1.3 in, Width 3.39 in, Length 2.05 in, Legend Markings No Legend, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
