  15. Illuminated Push Button Operator, 22 mm, Blue

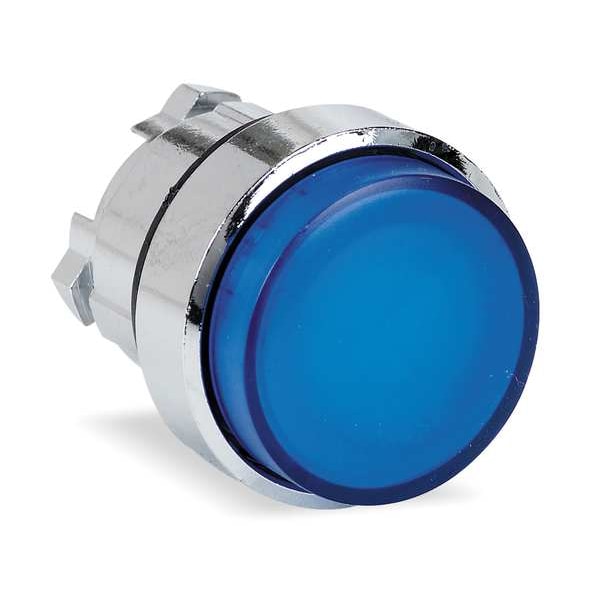

Schneider Electric Illuminated Push Button Operator, 22 mm, Blue ZB4BW163 - main

Illuminated Push Button Operator, 22 mm, Blue

  • Mfr # ZB4BW163

  • Zoro # G0520676

product price: $10.79
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Blue
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BW163
Zoro #
G0520676
UPC #
785901376439
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Cad Overall Depth
33 mm
Cad Overall Height
29 mm
Manufacturer Warranty Length
18 mo
Overall Height
1.14 in
Overall Width
1.14 in
Overall Depth
1.3 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Blue
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Module Type
No Lamp Module Included
Color
Blue
Lamp Type
No Lamp Module Included
Lamp Voltage
Dependent on Module Used
Lamp Module Voltage
Module Not Included
NEMA Rating
13, 4X
IP Rating
IP66
Bezel
Chrome Plated Metal
Basic Material
Metal
Type of Operator
Extended Button
Bezel Material
Metal
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Series
XB4
Number of Operators
1
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K
Shape Of Signaling Unit Head
round
Device Presentation
basic sub-assemblies
Operator Additional Information
with plain lens
Device Short Name
ZB4
Product Certifications
UL Listed || DNV || LROS (Lloyds register of shipping) || GL || BV || CSA
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Head Type
standard
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Product Compatibility
universal LED
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Overvoltage Category
class I IEC 60536
Ambient Air Temperature For Operation
-40-70°C
Mechanical Durability
10000000 cycles
Ik Degree Of Protection
IK05 EN 50102
Protective Treatment
TH
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type
head for illuminated push-button
Operator Profile
blue projecting, unmarked
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Product Type
Push Button Operators
Operator Material
Metal
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Hazardous Location Specification
Not Rated

Description

Extended Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Blue, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
