  15. Illuminated Push Button Operator, 22 mm, Blue

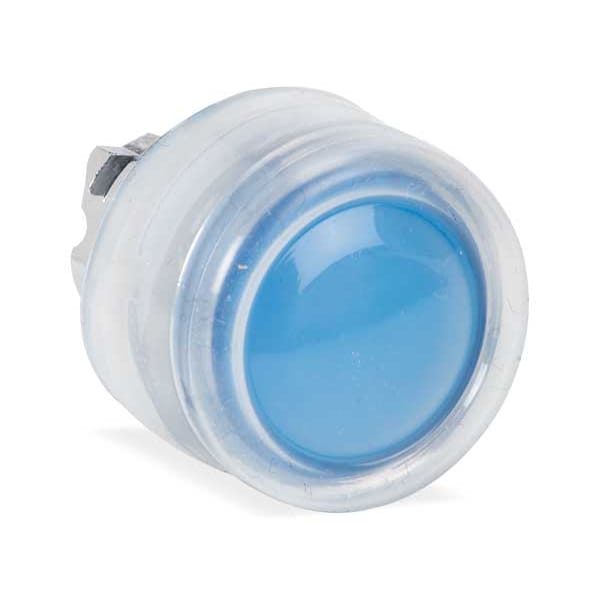

Schneider Electric Illuminated Push Button Operator, 22 mm, Blue ZB4BW563 - main

Illuminated Push Button Operator, 22 mm, Blue

  • Mfr # ZB4BW563

  • Zoro # G1658903

product price: $24.15
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Blue
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BW563
Zoro #
G1658903
UPC #
785901383185
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Cad Overall Depth
30 mm
Overall Height
1.14 in
Overall Depth
1.18 in
Manufacturer Warranty Length
18 mo
Overall Width
1.14 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Blue
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Basic Material
Metal
Color
Blue
NEMA Rating
13, 4X
Bezel
Chrome Plated Metal
Lamp Module Voltage
Module Not Included
Lamp Module Type
No Lamp Module Included
Lamp Voltage
Dependent on Module Used
IP Rating
IP69K
Type of Operator
Flush Booted Button
Lamp Type
No Lamp Module Included
Bezel Material
Metal
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Series
XB4
Number of Operators
1
Ambient Air Temperature For Storage
-40-70°C
Operator Profile
blue flush, unmarked
Ambient Air Temperature For Operation
-40-70°C
Shape Of Signaling Unit Head
round
Product Or Component Type
head for illuminated push-button
Device Short Name
ZB4
Ip Degree Of Protection
IP66 IEC 60529 || IP67
Mechanical Durability
10000000 cycles
Product Compatibility
universal LED
Product Certifications
BV || GL || UL Listed || LROS (Lloyds register of shipping) || DNV || CSA
Overvoltage Category
class I IEC 60536
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ik Degree Of Protection
IK06 EN 50102
Operator Additional Information
clear boot
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment
TH
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Head Type
standard
Device Presentation
basic sub-assemblies
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operating Temperature - Minimum
-40 Degrees F
Hazardous Location Specification
Not Rated
Product Type
Push Button Operators
Operating Temperature - Maximum
158 Degrees F
Operator Material
Metal
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Booted Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Blue, NEMA Rating 13, 4X, IP Rating IP69K, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
