  15. Illuminated Push Button Operator, 22 mm, Orange

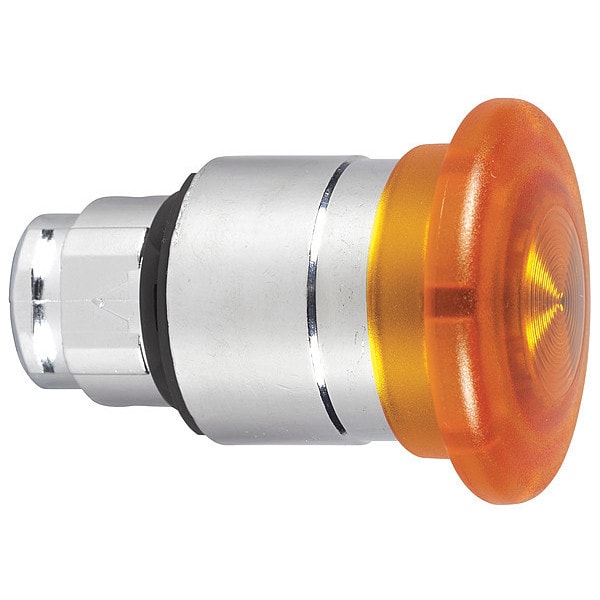

Schneider Electric Illuminated Push Button Operator, 22 mm, Orange ZB4BW653 - main

Illuminated Push Button Operator, 22 mm, Orange

  • Mfr # ZB4BW653

  • Zoro # G6575886

product price: $46.29
/ea

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BW653
Zoro #
G6575886
UPC #
785901666622
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Size
22 mm
Mounting Diameter
22 mm
Cad Overall Width
40 mm
Cad Overall Depth
53 mm
Cad Overall Height
40 mm
Overall Depth
2.09 in
Manufacturer Warranty Length
18 mo
Overall Width
1.57 in
Overall Height
1.57 in

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Head Color
Orange
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
IP Rating
IP66
Lamp Module Voltage
Module Not Included
Basic Material
Metal
Bezel
Chrome Plated Metal
Type of Operator
40mm Mushroom Head
Lamp Module Type
No Lamp Module Included
NEMA Rating
13, 4X
Lamp Type
No Lamp Module Included
Color
Orange
Lamp Voltage
Depende del Módulo Utilizado
Bezel Material
Metal
Series
XB4
Features
Snap-Fit Assembly, Secure Connection Screws, Low Load Electrical Contact
Number of Operators
1
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment
TH
Ambient Air Temperature For Storage
-40-70°C
Reset
push-pull
Overvoltage Category
class I IEC 60536
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K
Mechanical Durability
500000 cycles
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Electrical Composition Code
M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M3 4 single front mounting integral LED || M4 4 single and double front mounting integral LED
Product Or Component Type
head for illuminated push-button
Operator Profile
orange mushroom Ø 40 mm, unmarked
Product Compatibility
universal LED
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head
round
Device Presentation
basic sub-assemblies
Ik Degree Of Protection
IK05 EN 50102
Ambient Air Temperature For Operation
-40-70°C
Product Certifications
GL || UL Listed || DNV || LROS (Lloyds register of shipping) || CSA || BV
Head Type
standard
Device Short Name
ZB4
Number of Indicator Lights
0
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Metal
Operating Temperature - Minimum
-40 Degrees F
Product Type
Push Button Operators
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Hazardous Location Specification
Not Rated

Description

Mushroom Head Push Button, 22 mm, Maintained, Type of Operator 40mm Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Orange, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
