  15. Illuminated Push Button Operator, 22 mm, Red

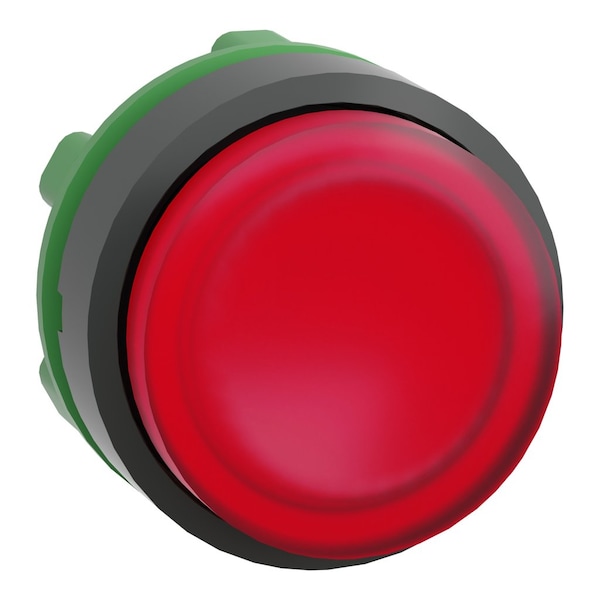

Schneider Electric Illuminated Push Button Operator, 22 mm, Red ZB5AW143 - main

Illuminated Push Button Operator, 22 mm, Red

  • Mfr # ZB5AW143

  • Zoro # G1439541

product price: $9.85
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW143
Zoro #
G1439541
UPC #
785901355250
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Width
29 mm
Cad Overall Depth
33 mm
Mounting Diameter
22 mm
Cad Overall Height
29 mm
Overall Depth
1.3 in
Overall Width
1.14 in
Overall Height
1.14 in
Manufacturer Warranty Length
18 mo

Details

Item
Extended Push Button
Push Button Style
Extended
Action
Momentary
Maintained Action Release
Push
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Standards
Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
NEMA Rating
13, 4X
IP Rating
IP66
Type of Operator
Extended Button
Lamp Module Voltage
Module Not Included
Lamp Type
No Lamp Module Included
Color
Red
Bezel
Plastic
Lamp Module Type
No Lamp Module Included
Basic Material
Plastic
Lamp Voltage
Dependent on Module Used
Bezel Material
Plastic
Features
Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness
Number of Operators
1
Series
XB5
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K
Head Type
standard
Marking
unmarked
Device Short Name
ZB5
Ik Degree Of Protection
IK05 EN 50102
Ambient Air Temperature For Operation
-40-70°C
Mechanical Durability
10000000 cycles
Product Or Component Type
head for illuminated push-button
Operator Additional Information
with plain lens
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Compatibility
universal LED
Ambient Air Temperature For Storage
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Group Of Product
proj push integral LED
Product Certifications
CSA || UL Listed || LROS (Lloyds register of shipping) || BV || GL || DNV
Overvoltage Category
class II IEC 60536
Operator Profile
red projecting, unmarked
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head
round
Device Presentation
basic sub-assemblies
Cap/Operator Or Lens Colour
red
Protective Treatment
TC
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated
Operator Material
Plastic
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Number of Indicator Lights
1
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Extended Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
