  15. Illuminated Push Button Operator, 22 mm, White

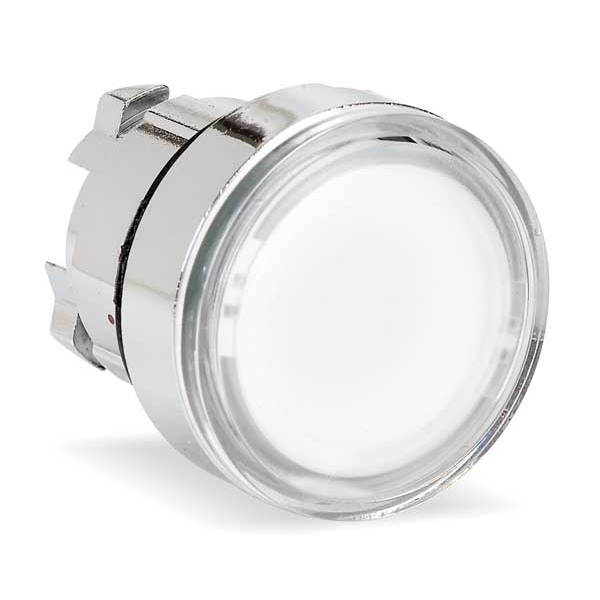

Schneider Electric Illuminated Push Button Operator, 22 mm, White ZB4BH013 - main

Illuminated Push Button Operator, 22 mm, White

  • Mfr # ZB4BH013

  • Zoro # G1008052

product price: $25.35
/ea

Key Features

Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BH013
Zoro #
G1008052
UPC #
785901382027
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Mounting Diameter
22 mm
Cad Overall Depth
30 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Overall Depth
1.18 in
Overall Width
1.14 in
Manufacturer Warranty Length
18 mo
Overall Height
1.14 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Head Color
White
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Voltage
Dependent on Module Used
Type of Operator
Flush Button
Bezel
Chrome Plated Metal
NEMA Rating
13, 4X
Basic Material
Metal
Lamp Module Type
No Lamp Module Included
Lamp Module Voltage
Module Not Included
Color
White
IP Rating
IP66
Lamp Type
No Lamp Module Included
Bezel Material
Metal
Number of Operators
1
Features
Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness
Series
XB4
Mechanical Durability
500000 cycles
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Shape Of Signaling Unit Head
round
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-40-70°C
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Head Type
standard
Product Compatibility
universal LED
Ik Degree Of Protection
IK06 IEC 50102
Device Short Name
ZB4
Protective Treatment
TH
Operator Profile
white flush, unmarked
Device Presentation
basic element
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Product Certifications
GL || BV || UL Listed || DNV || CSA || LROS (Lloyds register of shipping)
Overvoltage Category
class I IEC 60536
Product Or Component Type
head for illuminated push-button
Electrical Shock Protection Class
class I IEC 60536
Electrical Composition Code
M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Number of Indicator Lights
1
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated
Operator Material
Metal

Description

Flush Push Button, 22 mm, Maintained, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color White, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
