  15. Illuminated Push Button Operator, 22 mm, Yellow

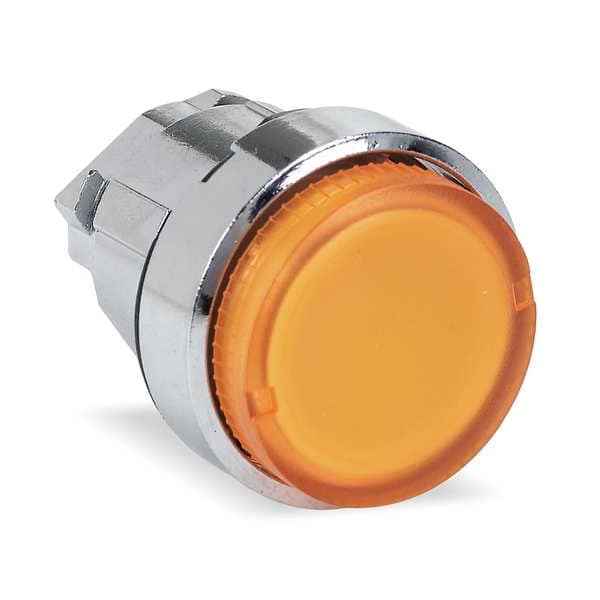

Schneider Electric Illuminated Push Button Operator, 22 mm, Yellow ZB4BW15 - main

Illuminated Push Button Operator, 22 mm, Yellow

  • Mfr # ZB4BW15

  • Zoro # G1311423

product price: $11.15
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Orange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BW15
Zoro #
G1311423
UPC #
785901353782
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Height
29 mm
Cad Overall Depth
32 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Overall Width
1.14 in
Overall Height
1.14 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.26 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Orange
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Bezel
Chrome Plated Metal
Lamp Module Type
No Lamp Module Included
Color
Yellow
IP Rating
IP66
Lamp Voltage
Dependent on Module Used
Basic Material
Metal
Lamp Module Voltage
Module Not Included
NEMA Rating
13, 4X
Type of Operator
Extended Button
Lamp Type
No Lamp Module Included
Bezel Material
Metal
Number of Operators
1
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Series
XB4
Mechanical Durability
10000000 cycles
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-40-55°C
Shape Of Signaling Unit Head
round
Device Short Name
ZB4
Protective Treatment
TH
Ik Degree Of Protection
IK06 EN 50102
Product Certifications
UL Listed || GL || DNV || CSA || BV || LROS (Lloyds register of shipping)
Product Compatibility
BA 9s
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K
Product Or Component Type
head for illuminated push-button
Electrical Composition Code
M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Device Presentation
basic sub-assemblies
Overvoltage Category
class I IEC 60536
Head Type
standard
Operator Additional Information
with plain lens
Operator Profile
orange projecting, unmarked
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Hazardous Location Specification
Not Rated
Number of Indicator Lights
1
Operator Material
Metal
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
131 Degrees F
Product Type
Push Button Operators

Description

Extended Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Yellow, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
