  15. Illuminated Push Button Operator, 30 mm, Green

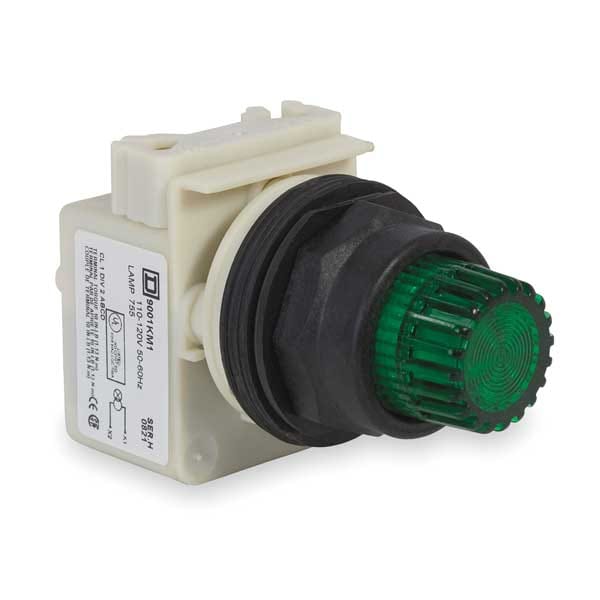

Schneider Electric Illuminated Push Button Operator, 30 mm, Green 9001SK2L1G - main

Illuminated Push Button Operator, 30 mm, Green

  • Mfr # 9001SK2L1G

  • Zoro # G2558875

product price: $148.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SK2L1G
Zoro #
G2558875
UPC #
785901048541
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Overall Depth
3.07 in
Overall Height
1.62 in
Overall Width
2.13 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR
NEMA Rating
12, 3R, 4X
Basic Material
Plastic
IP Rating
IP64
Lamp Module Voltage
120V AC
Lamp Module Type
Transformer
Color
Green
Bezel
Plastic
Lamp Type
LED
Lamp Voltage
6V AC
Replacement Lamp
4VCW2
Type of Operator
No Guard
Bezel Material
Plastic
Features
Snap-Fit Assembly
Number of Operators
1
Series
9001SK
Light Source
incandescent bulb
Supply Frequency
50 to 60 Hz
Light Block Supply
via integral transformer, via transformer 120 V AC 50/60 Hz || via transformer 110 V AC 50/60 Hz
[Us] Rated Supply Voltage
110 to 120 V
Device Short Name
9001SK
Product Or Component Type
head for illuminated push-button
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Contacts Type And Composition
without contact block
Product Certifications
UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03
Ip Degree Of Protection
IP64
Cap/Operator Or Lens Colour
green
Bulb Base
BA 9s
Shape Of Signaling Unit Head
octagonal
Operator Profile
projecting
Operator Material
Plastic
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Lamp Voltage - Maximum
120 V AC
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated

Description

Extended Push Button, 30 mm, Momentary, Type of Operator No Guard, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Green, NEMA Rating 12, 3R, 4X, IP Rating IP64, Legend Not Applicable, Standards CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR, Includes Incandescent Lamp, Features Snap-Fit Assembly
