  15. Illuminated Push Button Operator, 30 mm, Red

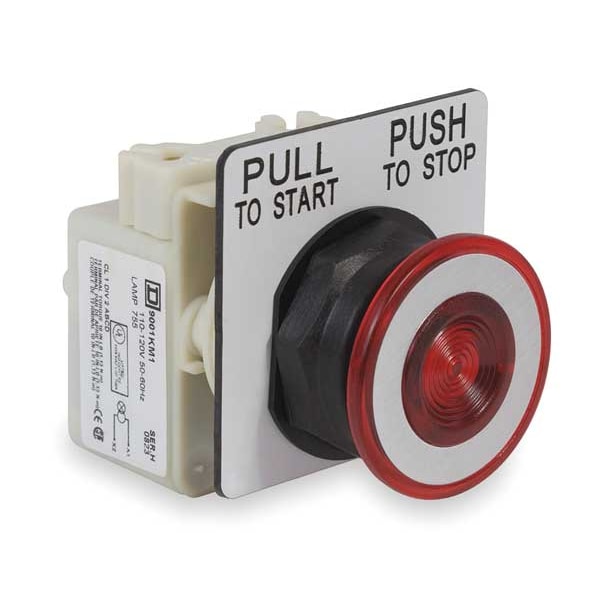

Schneider Electric Illuminated Push Button Operator, 30 mm, Red 9001SKR9P1R - main

Illuminated Push Button Operator, 30 mm, Red

  • Mfr # 9001SKR9P1R

  • Zoro # G0597852

product price: $209.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKR9P1R
Zoro #
G0597852
UPC #
785901043089
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
40 mm
Size
30 mm
Mounting Diameter
30 mm
Overall Width
2.13 in
Manufacturer Warranty Length
18 mo
Overall Height
1.62 in

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508
Lamp Module Type
Transformer
Replacement Lamp
4VCW2
Color
Red
Lamp Type
Incandescent
Bezel
Plastic
Type of Operator
41mm Mushroom Head
Lamp Module Voltage
120V AC
Lamp Voltage
6V AC
Basic Material
Plastic
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
IP Rating
IP65
Features
Visually Distinct at a Distance, Snap-Fit Assembly
Number of Operators
1
Bezel Material
Plastic
Series
9001SK
Operator Position Information
2 positions
Device Presentation
basic element
Product Or Component Type
head for illuminated push-button
Bulb Base
BA 9s
Light Source
incandescent bulb
Ip Degree Of Protection
IP66
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Device Short Name
9001SK
Cap/Operator Or Lens Colour
red
Operator Profile
mushroom Ø 41 mm
Light Block Supply
via integral transformer
Supply Frequency
50 to 60 Hz
Mechanical Durability
5000000 cycles
Operator Additional Information
screw-on plastic
[Us] Rated Supply Voltage
110 to 120 V
Contacts Type And Composition
without contact block
Lamp Voltage - Maximum
120 V AC
Operator Material
Plastic
Hazardous Location Specification
Not Rated
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Product Type
Push Button Operators

Description

Mushroom Head Push Button, 30 mm, Maintained, Type of Operator 41mm Mushroom Head, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP65, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508, Includes Incandescent Lamp, Features Visually Distinct at a Distance, Snap-Fit Assembly
