  13. Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, lockable test but to n, 120V AC

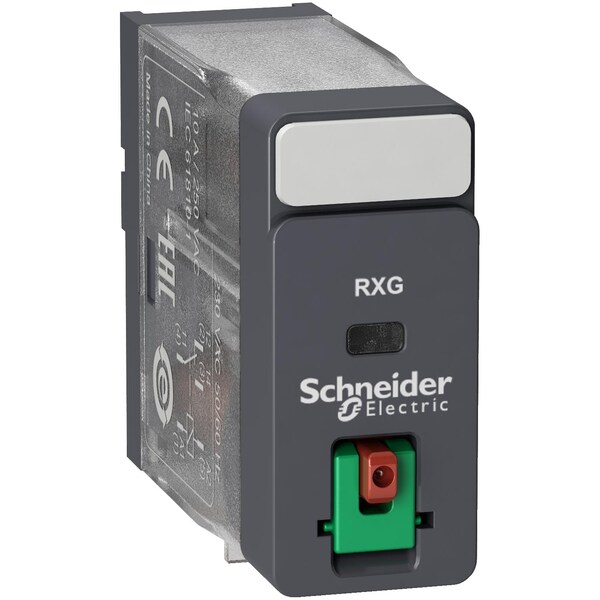

Schneider Electric Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, lockable test but to n, 120V AC RXG11F7 - main

Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, lockable test but to n, 120V AC

  • Mfr # RXG11F7

  • Zoro # G1978332

product price: $8.39
/ea
Sold in multiples of 200 for $1,678.00

Key Features

Coil Voltage
120V AC
Current Rating
10 A
Contact Rating (AC)
10 A @ 250V AC
Contact Rating (DC)
10 A @ 30V DC
Contact Material
Silver Alloy (AgSnO2In2O3)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXG11F7
Zoro #
G1978332
UPC #
-
Country of Origin
China

Details

Item
Plug-In Relay
Coil Voltage
120V AC
Current Rating
10 A
Contact Rating (AC)
10 A @ 250V AC
Contact Rating (DC)
10 A @ 30V DC
Contact Material
Silver Alloy (AgSnO2In2O3)
Features
Lockable Test Button; Insulation Class F; Flag Local Signalling
Power Consumption - Relay
0.82VA
Standards
IEC 61810-1, UL 508, CSA C22.2 No 14
Switching Voltage
250 V AC || 30 V DC
Operating Temp. Range
-40-70°C
Coil Resistance
6300 Ohm +/- 10 %
Dielectric Strength
1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation
Vibration Resistance
3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Electrical Durability
100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C
Test Levels
level A group mounting
[Ithe] Conventional Enclosed Thermal Current
10 A -40-55°C
Control Circuit Voltage Limits
0.8...1.1 Uc AC
Series Name
interface relay
Ip Degree of Protection
IP40
Contacts Type And Composition
1 C/O
Mechanical Durability
10000000 cycles
Device Short Name
RXG
Protection Category
RT I
Drop-Out Voltage Threshold
>= 0.3 Uc AC
Operating Rate
<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
Minimum Switching Capacity
500 mW at 100 mA, 5 V DC
Utilisation Coefficient
0.2
Shock Resistance
20 gn in operation, 100 gn not in operation
Ambient Air Temperature For Operation
-40-70°C
Ambient Air Temperature For Storage
-40-85°C
Relative Humidity
10-85 %
Resistance
6300 Ohm +/- 10 %
Overvoltage Category
III
Load Current
10 A 250 V AC
[Ui] Rated Insulation Voltage
250 V IEC, 300 V CSA, 300 V UL
Insulation Resistance
1000 MOhm at 500 V DC
Torque Value
0.8 N.m
Colour of Cover
standard
Maximum Switching Voltage
250 V AC, 30 V DC
Average Consumption
0.82 VA 60 Hz
Pollution Degree
2
Maximum Switching Capacity
2500 VA
Device Presentation
complete product
Control Type
lockable test button
Dielectric Voltage
1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
Status Indicator
Mechanical Flag

Description

Relay,1CO 10A@250VAC,120VAC,Coil Ltb
