- Item

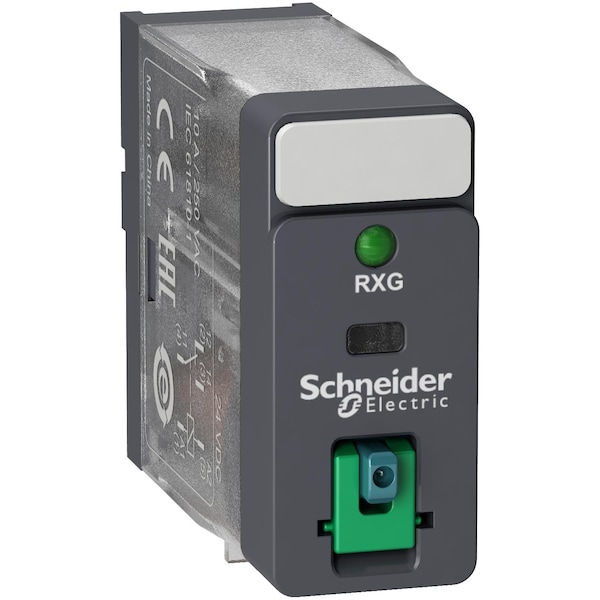

- Relay,1CO 10A@250VAC,12VDC,Coil Led+ltb
- Coil Voltage
- 12V DC
- Current Rating
- 10 A
- Contact Rating (AC)
- 10 A @ 250V
- Contact Rating (DC)
- 10 A @ 30V
- Standards
- CSA C22.2 No 14; IEC 61810-1; UL 508; CSA; EAC; UL; CE; DNV-GL
- Contact Material
- Silver Alloy (AgSnO2In2O3)
- Features
- Lockable Test Button; Insulation Class F; Flag Local Signalling; With Status LED
- Coil Resistance
- 270 Ohm +/- 10 %
- Operating Temp. Range
- -40-70°C
- Dielectric Voltage
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
- Protection Category
- RT I
- Switching Voltage
- 250 V AC || 30 V DC
- Device Presentation
- Complete product
- Mechanical Durability
- 10000000 cycles
- Rated Insulation Voltage
- 250 V IEC; 300 V CSA; 300 V UL
- Operating Rate
- Less than or Equal to 1800 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load
- Operating Time
- 20 ms
- IP Degree Of Protection
- IP40
- Cover Color
- Standard
- Ambient Air Temperature For Operation
- -40 to 158°F (-40 to 70°C)
- Minimum Switching Capacity
- 500 mW at 100 mA, 5 V DC
- Ambient Air Temperature For Storage
- -40 to 185°F (-40 to 85°C)
- Load Current
- 10 A 250 V AC
- Test Levels
- Level A group mounting
- Reset Time
- 20 ms
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Vibration Resistance
- 3 gn +/- 0.75 mm 10 to 150 Hz)in operation; 5 gn +/- 0.75 mm 10 to 150 Hz)not in operation
- Product Certifications
- CSA; CE; EAC; UL; DNV-GL
- Overvoltage Category
- III
- Relative Humidity
- 10 to 85%
- Series Name
- Interface relay
- Control Circuit Voltage
- 12 V DC
- Torque Value
- 7.08 lbf.in (0.8 N.m)
- Contact Resistance
- 100 mOhm
- Utilisation Coefficient
- 0.2
- Dielectric Strength
- 1000 V AC between contacts with micro disconnection; 5000 V AC between coil and contact with reinforced insulation
- Pollution Degree
- 2
- Shock Resistance
- 20 gn in operation; 100 gn not in operation
- Maximum Switching Voltage
- 250 V AC; 30 V DC
- Conventional Enclosed Thermal Current
- 10 A -40 to 131°F (-40 to 55°C)
- Electrical Insulation Class
- Class F
- Maximum Switching Capacity
- 2500 VA
- Electrical Durability
- 100000 cycles NO resistive at 55°C; 100000 cycles NC resistive at 55°C
- Drop-Out Voltage Threshold
- Greater than or Equal to 0.1 Uc DC
- Control Type
- Lockable test button
- [Ithe] Conventional Enclosed Thermal Current
- 10 A -40-55°C
- Device Short Name
- RXG
- [Ui] Rated Insulation Voltage
- 250 V IEC, 300 V CSA, 300 V UL
- Status Indicator
- LED Indicator
- Number of Pins
- 5
- Electrical Connection
- Plug In
- Base Shape
- Square
- Contact Form
- SPDT
