  13. Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test but to n, 230V AC

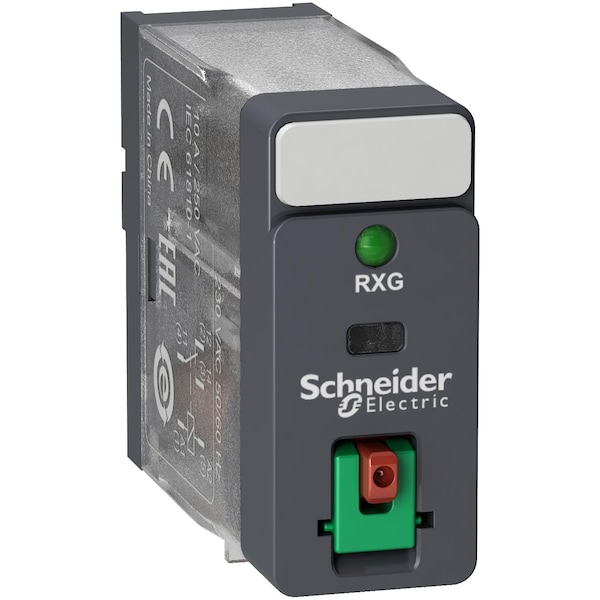

Schneider Electric Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test but to n, 230V AC RXG12P7 - main

Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test but to n, 230V AC

  • Mfr # RXG12P7

  • Zoro # G7330960

product price: $17.55
/ea
Sold in multiples of 10 for $175.50

Key Features

Standards
IEC 61810-1 || CSA C22.2 No 14 || UL 508
Product Or Component Type
plug-in relay
Mounting Position
any position
Minimum Switching Capacity
500 mW at 100 mA, 5 V DC
Protection Category
RT I
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXG12P7
Zoro #
G7330960
UPC #
-
Country of Origin
China

Details

Item
Relay,1CO 10A@250VAC,230VAC,Coil Led+ltb
Standards
IEC 61810-1 || CSA C22.2 No 14 || UL 508
Product Or Component Type
plug-in relay
Mounting Position
any position
Minimum Switching Capacity
500 mW at 100 mA, 5 V DC
Protection Category
RT I
Status Led
with
Control Circuit Voltage Limits
0.8...1.1 Uc AC
Resistance
23500 Ohm +/- 15 %
Operating Time
20 ms
Test Levels
level A
Vibration Resistance
3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Local Signalling
flag
Pollution Degree
2
Product Certifications
CSA || EAC || UL || CE || DNV-GL
Mechanical Durability
10000000 cycles
Overvoltage Category
III
[Ie] Rated Operational Current
10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
Device Short Name
RXG
Ambient Air Temperature For Storage
-40-85°C
Contacts Type And Composition
1 C/O
Contacts Material
silver alloy (AgSnO2In2O3)
Relative Humidity
10-85 %
Series Name
interface relay
Load Current
10 A 250 V AC
Shock Resistance
20 gn in operation || 100 gn not in operation
Electrical Insulation Class
class F
[Ithe] Conventional Enclosed Thermal Current
10 A -40-55°C
Ip Degree Of Protection
IP40
[Uimp] Rated Impulse Withstand Voltage
6 kV 1.2/50µs
Torque Value
0.8 N.m
Electrical Durability
100000 cycles NO resistive at 55°C || 100000 cycles NC resistive at 55°C
[Ui] Rated Insulation Voltage
250 V IEC || 300 V CSA || 300 V UL
[Uc] Control Circuit Voltage
230 V AC 50/60 Hz
Dielectric Strength
1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
Colour Of Cover
standard
Reset Time
20 ms
Average Consumption
0.82 VA 60 Hz
Insulation Resistance
1000 MOhm at 500 V DC
Contact Resistance
100 mOhm
Utilisation Coefficient
0.2
Maximum Switching Capacity
2500 VA
Operating Rate
<= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
Control Type
lockable test button
Ambient Air Temperature For Operation
-40-70°C
Drop-Out Voltage Threshold
>= 0.3 Uc AC
Maximum Switching Voltage
250 V AC || 30 V DC
Range of Product
Harmony Electromechanical Relays
Device Presentation
complete product

Description

Relay,1CO 10A@250VAC,230VAC,Coil Led+ltb
