  13. Single function relay, Harmony Timer Relays, 8A, 2CO, 0.05s.300h, off delay, 24.240V AC DC

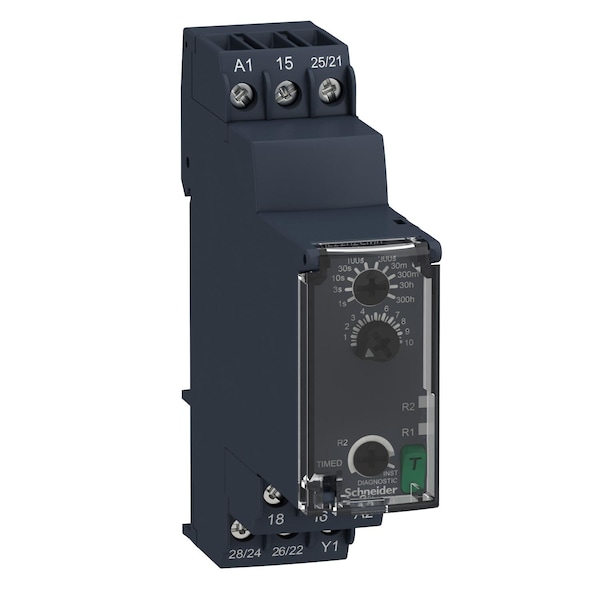

Schneider Electric Single function relay, Harmony Timer Relays, 8A, 2CO, 0.05s.300h, off delay, 24.240V AC DC RE22R2CMR - main

Single function relay, Harmony Timer Relays, 8A, 2CO, 0.05s.300h, off delay, 24.240V AC DC

  • Mfr # RE22R2CMR

  • Zoro # G7123984

product price: $90.08
/ea
Free Shipping & Returns

Key Features

Standards
UL 508 || IEC 61812-1
Width
22.5 mm
Voltage Range
0.85...1.1 Us
Ambient Air Temperature For Storage
-40-70°C
Switching Capacity In Va
2000 VA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RE22R2CMR
Zoro #
G7123984
UPC #
-
Country of Origin
Indonesia

Dimensions

Width
22.5 mm

Details

Item
Timer,24-240VAC/VDC,In 8A,Dpdt Out Of
Standards
UL 508 || IEC 61812-1
Voltage Range
0.85...1.1 Us
Ambient Air Temperature For Storage
-40-70°C
Switching Capacity In Va
2000 VA
Dielectric Strength
2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
Shock Resistance
15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
Minimum Pulse Duration
100 ms with load in parallel || 30 ms
Nominal Output Current
8A
Product Or Component Type
single function relay
Device Short Name
RE22
Immunity To Microbreaks
10 ms
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
Temperature Drift
+/- 0.05 %/°C
Creepage Distance
4 kV/3 IEC 60664-1
Maximum Delay Response
100 ms
Mounting Position
any position
Overvoltage Category
III IEC 60664-1
Control Type
rotary knob || diagnostic button
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Status Led
Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised
Power Consumption In Va
3-3 VA 240 V AC
Mounting Support
35 mm DIN rail conforming to EN/IEC 60715
Pollution Degree
3 IEC 60664-1
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz
Power Consumption In W
1.5 W 240 V DC
Housing Material
self-extinguishing
Ip Degree Of Protection
housing IP40 IEC 60529 || terminals IP20 IEC 60529 || front panel IP50 IEC 60529
Setting Accuracy Of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Mechanical Durability
10000000 cycles
Vibration Resistance
20 m/s² 10-150 Hz)IEC 60068-2-6
Product Certifications
CSA || CCC || RCM || CE || GL || UL || EAC
Voltage Drift
+/- 0.2 %/V
Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Time Delay Range
10...100 s || 3...30 h || 1...10 s || 3...30 s || 30...300 h || 0.3...3 s || 0.05...1 s || 30...300 min || 30...300 s || 3...30 min
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2-50µs IEC 60664-1
Maximum Switching Voltage
250 V AC
Minimum Switching Current
10 mA 5 V DC
Maximum Switching Current
8A
Discrete Output Type
relay
Relative Humidity
95-95 % 25-55°C
Electromagnetic Compatibility
fast transients immunity test 1 kV capacitive connecting clip)level 3 IEC 61000-4-4 || surge immunity test 1 kV differential mode)level 3 IEC 61000-4-5 || surge immunity test 2 kV common mode)level 3 IEC 61000-4-5 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/m 80 MHz...1 GHz)level 3 IEC 61000-4-3 || conducted RF disturbances 10 V 0.15...80 MHz)level 3 IEC 61000-4-6 || fast transient bursts 2 kV direct contact)level 3 IEC 61000-4-4 || immunity to microbreaks and voltage drops 30 % 500 ms) IEC 61000-4-11 || immunity to microbreaks and voltage drops 100 % 20 ms) IEC 61000-4-11
Reset Time
120 ms on de-energisation
Input Voltage
<= 2.4 V
Ambient Air Temperature For Operation
-20-60°C
Tightening Torque
0.6-1 N.m IEC 60947-1
Time Delay Type
off-delay
Contacts Type And Composition
1 C/O timed or instantaneous contact, cadmium free || 2 C/O timed contact, cadmium free
Electrical Durability
100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1
Supply Frequency
50...60 Hz +/- 5 %
Number of Functions
1
Range of Product
Harmony Timer Relays

Description

Timer,24-240VAC/VDC,In 8A,Dpdt Out Of
