  13. Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test but to n, 24V AC

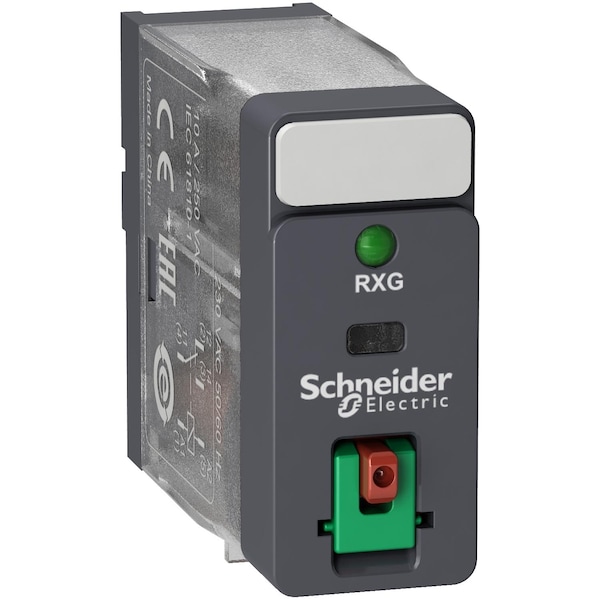

Schneider Electric Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test but to n, 24V AC RXG12B7 - main

Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test but to n, 24V AC

  • Mfr # RXG12B7

  • Zoro # G1985472

product price: $10.59
/ea
Sold in multiples of 10 for $105.90

Key Features

Coil Voltage
24V AC
Current Rating
10 A
Contact Rating (AC)
10 A @ 250V AC
Contact Rating (DC)
10 A @ 30V DC
Contact Material
Silver Alloy (AgSnO2In2O3)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXG12B7
Zoro #
G1985472
UPC #
-
Country of Origin
China

Details

Item
Plug-In Relay
Coil Voltage
24V AC
Current Rating
10 A
Contact Rating (AC)
10 A @ 250V AC
Contact Rating (DC)
10 A @ 30V DC
Contact Material
Silver Alloy (AgSnO2In2O3)
Standards
CSA C22.2 No 14; IEC 61810-1; UL 508; CSA; EAC; UL; CE; DNV-GL
Features
Lockable Test Button; Insulation Class F; Flag Local Signalling; With Status LED
Power Consumption - Relay
0.82VA
Coil Resistance
260 Ohm +/- 10 %
Protection Category
RT I
Dielectric Voltage
1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
Switching Voltage
250 V AC || 30 V DC
Operating Temp. Range
-40-70°C
Load Current
10 A 250 V AC
Shock Resistance
20 gn in operation, 100 gn not in operation
Control Circuit Voltage Limits
0.8...1.1 Uc AC
Vibration Resistance
3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
[Ui] Rated Insulation Voltage
250 V IEC, 300 V CSA, 300 V UL
Electrical Durability
100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C
Ambient Air Temperature For Operation
-40-70°C
Drop-Out Voltage Threshold
>= 0.3 Uc AC
Insulation Resistance
1000 MOhm at 500 V DC
Minimum Switching Capacity
500 mW at 100 mA, 5 V DC
Ambient Air Temperature For Storage
-40-85°C
Average Consumption
0.82 VA 60 Hz
Pollution Degree
2
Test Levels
level A group mounting
Colour of Cover
standard
Device Short Name
RXG
Mechanical Durability
10000000 cycles
Control Type
lockable test button
Device Presentation
complete product
Utilisation Coefficient
0.2
Torque Value
0.8 N.m
Overvoltage Category
III
Relative Humidity
10-85 %
Maximum Switching Capacity
2500 VA
Operating Rate
<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
Series Name
interface relay
Ip Degree of Protection
IP40
[Ithe] Conventional Enclosed Thermal Current
10 A -40-55°C
Status Indicator
LED Indicator
Push-To-Test Method
Lockable Push Test Button

Description

Relay,1CO 10A@250VAC,24VAC,Coil Led+ltb
