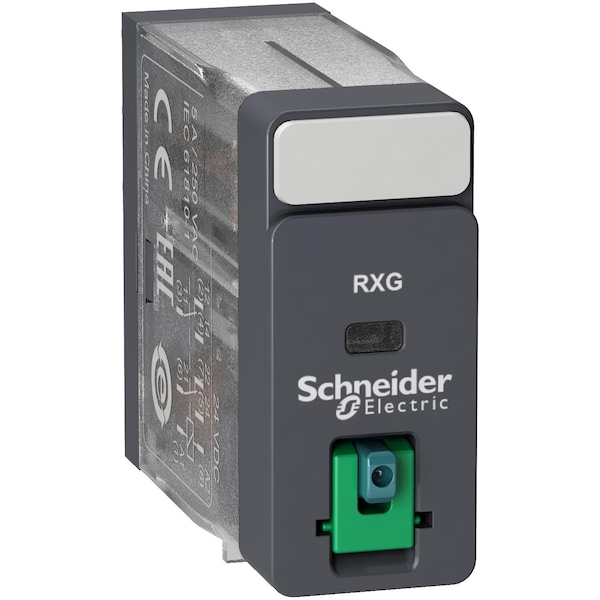

Interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, lockable test but to n, 24V DC

Plug-In Relay

Pin

24V DC

5 A

5A @ 250V AC

5A @ 30V DC

Lockable Test Button; Insulation Class F; Flag Local Signalling

Silver Alloy (AgSnO2In2O3)

UL 508, IEC 61810-1, CSA C22.2 No 14

1100 Ohm +/- 10 %

250 V AC || 30 V DC

-40-70°C

1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 3000 V AC between poles with basic insulation

RT I

100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C

1100 Ohm +/- 10 %

2 C/O

standard

complete product

10000000 cycles

<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load

>= 0.1 Uc DC

5 A 250 V AC

0.2

250 V AC, 30 V DC

5 A -40-55°C

RXG

0.8 N.m

level A group mounting

III

20 gn in operation, 100 gn not in operation

10-85 %

250 V IEC, 300 V CSA, 300 V UL

interface relay

1250 VA

-40-70°C

lockable test button

-40-85°C

IP40

3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation

2

50 mW at 10 mA, 5 V DC

1000 MOhm at 500 V DC

100 mOhm

Standard

5 A -40 to 131°F (-40 to 55°C)

24 V DC

1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation

20 ms

20 ms

Class F

CSA; CE; EAC; UL; DNV-GL

250 V IEC; 300 V CSA; 300 V UL

Mechanical Flag
