  13. Interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, 230V AC

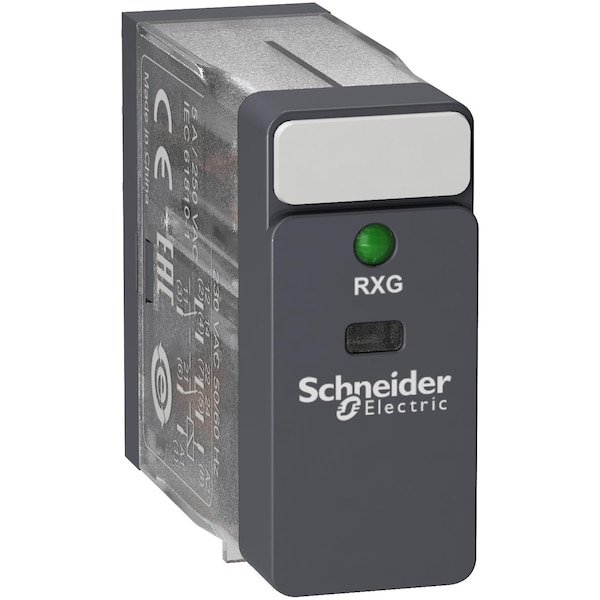

Schneider Electric Interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, 230V AC RXG23P7 - main

Interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, 230V AC

  • Mfr # RXG23P7

  • Zoro # G1983765

product price: $13.89
/ea
Sold in multiples of 10 for $138.90

Key Features

Electrical Connection
Pin
Coil Voltage
230V AC
Current Rating
5 A
Contact Rating (AC)
5 A @ 250V AC
Contact Rating (DC)
5 A @ 30V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXG23P7
Zoro #
G1983765
UPC #
-
Country of Origin
China

Details

Item
Plug-In Relay
Electrical Connection
Pin
Coil Voltage
230V AC
Current Rating
5 A
Contact Rating (AC)
5 A @ 250V AC
Contact Rating (DC)
5 A @ 30V DC
Contact Material
Silver Alloy (AgSnO2In2O3)
Standards
CSA C22.2 No 14; IEC 61810-1; UL 508; CSA; EAC; UL; CE; DNV-GL
Power Consumption - Relay
0.82VA
Features
Insulation Class F; flag Local Signalling; With Status Led
Switching Voltage
250 V AC || 30 V DC
Coil Resistance
23500 Ohm +/- 15 %
Dielectric Voltage
1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
Operating Temp. Range
-40-70°C
Protection Category
RT I
Series Name
interface relay
Pollution Degree
2
Vibration Resistance
3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Electrical Durability
100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C
[Ithe] Conventional Enclosed Thermal Current
5 A -40-55°C
Device Presentation
complete product
Test Levels
level A group mounting
Insulation Resistance
1000 MOhm at 500 V DC
Device Short Name
RXG
Shock Resistance
20 gn in operation, 100 gn not in operation
Minimum Switching Capacity
50 mW at 10 mA, 5 V DC
Ambient Air Temperature For Operation
-40-70°C
Overvoltage Category
III
Drop-Out Voltage Threshold
>= 0.3 Uc AC
Ip Degree of Protection
IP40
Average Consumption
0.82 VA 60 Hz
Control Circuit Voltage Limits
0.8...1.1 Uc AC
Maximum Switching Capacity
1250 VA
Utilisation Coefficient
0.2
Colour of Cover
standard
Ambient Air Temperature For Storage
-40-85°C
Torque Value
0.8 N.m
Load Current
5 A 250 V AC
Mechanical Durability
10000000 cycles
Operating Rate
<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
[Ui] Rated Insulation Voltage
250 V IEC, 300 V CSA, 300 V UL
Relative Humidity
10-85 %
Status Indicator
LED Indicator

Description

Relay,2CO 5A@250VAC,230VAC,Coil Led
