  13. Interface plug in relay, Harmony Electromechanical Relays, pre assembled, 5A, 2CO, with LED, lockable test but to n, 24V DC

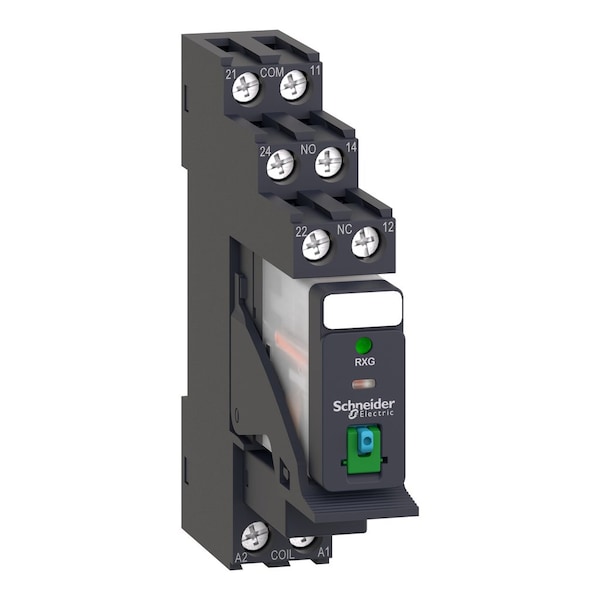

Schneider Electric Interface plug in relay, Harmony Electromechanical Relays, pre assembled, 5A, 2CO, with LED, lockable test but to n, 24V DC RXG22BDPV - main

Interface plug in relay, Harmony Electromechanical Relays, pre assembled, 5A, 2CO, with LED, lockable test but to n, 24V DC

  • Mfr # RXG22BDPV

  • Zoro # G510839234

product price: $22.29
/ea
Sold in multiples of 180 for $4,012.20

Key Features

Standards
IEC 61810-1, CSA C22.2 No 14, UL 508, IEC 61984
Average Coil Consumption
0.53 W DC
[Ui] Rated Insulation Voltage
250 V IEC
Status Led
with
Connections - Terminals
connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end, connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end, connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXG22BDPV
Zoro #
G510839234
UPC #
-
Country of Origin
Canada

Details

Item
Harmony RXG Relay module, 2C/O 5A 24VDC
Standards
IEC 61810-1, CSA C22.2 No 14, UL 508, IEC 61984
Average Coil Consumption
0.53 W DC
[Ui] Rated Insulation Voltage
250 V IEC
Status Led
with
Connections - Terminals
connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end, connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end, connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Torque Value
0.8 N.m, 7.0 lbf.in
Dielectric Strength
1000 V AC between contacts with micro disconnection, 1300 V between terminals and base with basic insulation, 3000 V between terminals and LTB area with basic insulation, 3000 V AC between poles with basic insulation, 5000 V AC between coil and contact with reinforced insulation
[Uc] Control Circuit Voltage
24 V DC
Resistance
1100 Ohm +/- 10 %
Protection Category
RT I
Drop-Out Voltage Threshold
>= 0.1 Uc DC
Maximum Switching Capacity
1250 VA AC, 150 W DC
Ambient Air Temperature For Operation
-40-70°C
Electrical Durability
100000 cycles resistive
Load Current
5A
[Ie] Rated Operational Current
5 A 30 V DC) UL, 5 A 30 V DC) IEC, 5 A 250 V AC) IEC, 5 A 250 V AC) UL
Product or Component Type
pre-assembled plug-in relay with socket
Overvoltage Category
III
Vibration Resistance
3 gn +/- 1.5 mm 10-150 Hz)in operation, 5 gn +/- 1.5 mm 10-150 Hz)not in operation
[Ithe] Conventional Enclosed Thermal Current
5A
Shock Resistance
20 gn in operation, 100 gn not in operation
Ambient Air Temperature For Storage
-40-85°C
Utilisation Coefficient
0.2
Control Type
lockable test button
Pollution Degree
2
Relative Humidity
10-85 %
Mounting Position
any position
Colour of Cover
transparent
Minimum Switching Capacity
50 mW at 10 mA, 5 V DC
Contacts Type And Composition
2 C/O
Contacts Material
silver alloy (AgSnO2In2O3)
Device Short Name
RXG
Range of Product
Harmony Electromechanical Relays
Maximum Switching Voltage
250 V
Series Name
interface relay
Ip Degree of Protection
IP20
Device Presentation
complete product
Operating Rate
<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
Mechanical Durability
10000000 cycles
Insulation Resistance
1000 MOhm at 500 V DC
Test Levels
level A group mounting

Description

Harmony RXG Relay module, 2C/O 5A 24VDC

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
