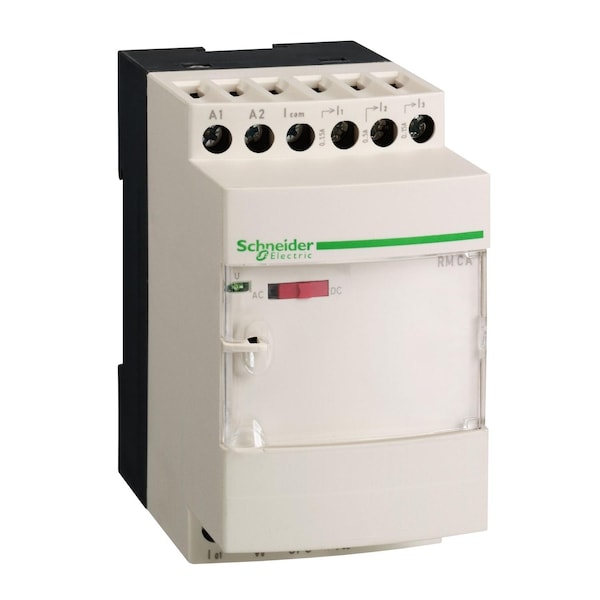

Isolated analog converter, Harmony Analog, 0.15A current to 0.10V or 4.20mA

Voltage/Current Converter

DIN Rail, Mounting Plate

24V DC to 0V to 10V, 0mA to 20mA, and 4mA to 20mA

50/60 Hz

IEC : CSA Certified; UL ; GL

2 IEC 60664-1

reverse polarity protection on output, short-circuit protection on output, overvoltage protection on output (+/- 30 V)

+/- 5 % of full scale20°C temporary performance degradation when subject to electromagnetic interference)

CISPR 11, CISPR 22 group 1 - class B

0.5 kV 1.2/50µs IEC 61000-4-5

-15...0 V no input or input wire broken

1000 ppm/°C 0...5 A, 2000 ppm/°C 0...15 A, 500 ppm/°C 0...1.5 A

voltage/current converter

2 kV

Harmony Analog

5 gn 10-100 Hz)IEC 60068-2-6

by screws (mounting plate), clip-on (35 mm symmetrical DIN rail)

for power ON LED (green)

0.6-1.1 N.m

850°C IEC 60695-2-1, 850°C UL

50 gn 11 ms IEC 60068-2-27

0-50°C mounting side by side, 0-60°C 2 cm spacing

IP20 terminal block), IP50 housing)

current 0...20 mA <= 500 Ohm by cabling, current 4...20 mA <= 500 Ohm by cabling, voltage 0...10 V >= 100 kOhm by cabling

1 kV IEC 61000-4-4 on input-output), 2 kV IEC 61000-4-4 on power supply)

<= 70 mA voltage output, <= 90 mA current output

-40-85°C

6 kV in contact)IEC 61000-4-2 level 3, 8 kV in air)IEC 61000-4-2 level 3

-30-0 mA 0...20 mA no input or input wire broken, 4-30 mA 4...20 mA no input or input wire broken

+/- 0.2 % full scale 20°C, +/- 0.6 % full scale 60°C

24 V DC +/- 20 %, isolated

CE

2 x 1.5 mm², 1 x 2.5 mm²

current 0...1.5 A AC/DC 50/60 Hz, current 0...15 A AC/DC 50/60 Hz, current 0...5 A AC/DC 50/60 Hz
