  15. Joystick Operator, 22mm, 2 Dir, Momentary

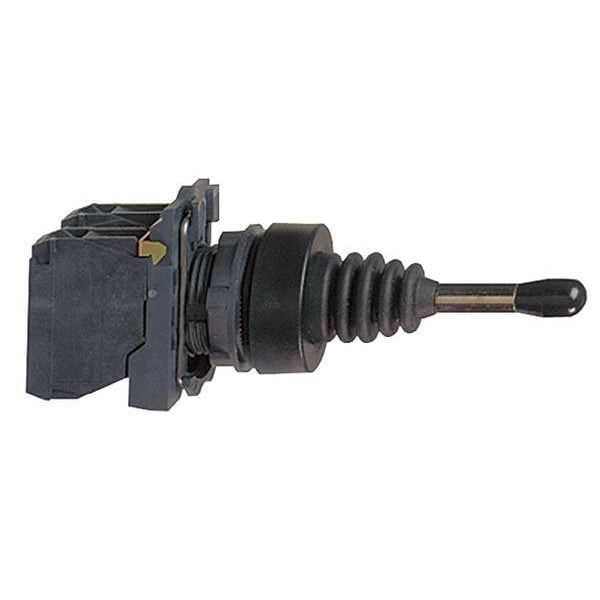

Schneider Electric Joystick Operator, 22mm, 2 Dir, Momentary XD5PA22 - main

Joystick Operator, 22mm, 2 Dir, Momentary

  • Mfr # XD5PA22

  • Zoro # G1273501

product price: $197.99
/ea
Free Shipping & Returns

Key Features

Size
22 mm
Number of Directions
2
Contact Form
1NO
Contact Rating
10A @ 600V AC
Joystick Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XD5PA22
Zoro #
G1273501
UPC #
785901384908
Country of Origin
France

Dimensions

Size
22 mm
Height
47 mm
Width
30 mm
Depth
108 mm
Mounting Diameter
22 mm
Overall Width
1.18 in
Panel Cutout Diameter
22 mm
Overall Depth
4.25 in
Shaft Length
2.13 in
Manufacturer Warranty Length
18 mo
Overall Height
1.85 in

Details

Item
Joystick Operator
Number of Directions
2
Contact Form
1NO
Contact Rating
10A @ 600V AC
Joystick Material
Plastic
Action
Momentary
NEMA Rating
13, 4X
Latching / Non-Latching
Non-Latching
Direction of Operation
Vertical
Bezel
Double-Insulated Plastic
IP Rating
IP66
Standards
China RoHS, EU RoHS, REACH, WEEE
Bezel Material
Plastic
NEMA Contact Rating Designation
R300
Switch Action
Momentary
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
Series
XB5
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
Ik Degree Of Protection
IK03 IEC 50102
Shape Of Signaling Unit Head
round
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
[Ie] Rated Operational Current
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Tightening Torque
0.8-1.2 N.m EN 60947-1
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Contacts Type And Composition
1 NO
Electrical Shock Protection Class
class II IEC 60536
Notch Per Direction
1-1
Contacts Material
silver alloy (Ag/Ni)
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Device Short Name
XD5
Contacts Usage
standard
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Product Or Component Type
joystick controller
Operator Direction Information
2 directions
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ip Degree Of Protection
IP66 IEC 60529
Operator Position Information
3 positions
Device Presentation
complete product
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Contact Operation
slow-break
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Type Of Operator
to 0 position spring return
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Fixing Collar Material
plastic
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Product Certifications
DNV || CSA || LROS (Lloyds register of shipping) || BV || GL || UL Listed
Mechanical Durability
1000000 cycles
Ambient Air Temperature For Operation
-25-70°C
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Operator Profile
54 mm long operating shaft
Ambient Air Temperature For Storage
-40-70°C
Positive Opening
without
Protective Treatment
TH
NEMA Enclosure Rating
13, 4X
Number of Positions
2
Latch Type
Non-Latching

Description

Joystick Operator, 22 mm, Number of Directions 2, 1NO Contact Form, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation R300, Joystick Material Plastic, Bezel Double-insulated Plastic, Non-Latching, Vertical Direction of Operation, Action Momentary, NEMA Rating 13, 4X, IP Rating IP66, Standards China RoHS, EU RoHS, REACH, WEEE
