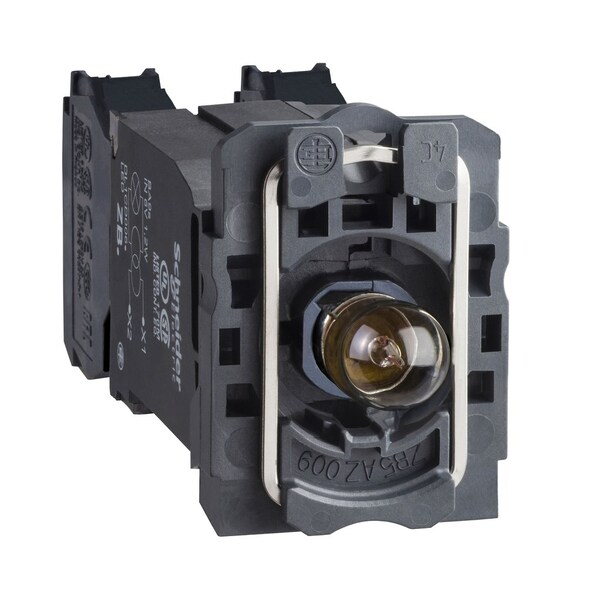

Lamp Module and Contact Block, 1NO/1NC

Lamp Module and Contact Block, 1NO/1NC

Mfr # ZB5AW035
Zoro # G2015632

$89.35

Free Shipping & Returns

Key Features

Contact Rating

10 A @ 600V AC/DC

Voltage

110 to 120V AC

Size

22 mm

Lamp Type

Incandescent

Terminal Connection

Screw Clamp terminals

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

ZB5AW035

Zoro #

G2015632

UPC #

785901376507

Country of Origin

France

Dimensions

Size

22 mm

Compatible Panel Cutout Diameter

22 mm

Details

Item

Lamp Module and Contact Block

Contact Rating

10 A @ 600V AC/DC

Voltage

110 to 120V AC

Lamp Type

Incandescent

Terminal Connection

Screw Clamp terminals

Contact Form

1NO/1NC

Replacement Lamp

Lamp Module Type

Transformer

Color

Clear

Lamp Module Voltage

110 to 120V AC

Basic Material

Plastic

For Use With

B9 Modules

NEMA Rating

1, 12, 13, 2, 3, 4, 4X

IP Rating

IP20

Lamp Voltage

6V AC

NEMA Contact Rating Designation

A600, Q600

Standards

BV, CSA, DNV, GL, LROS, RoHS, UL Listed

DC Contact Rating

0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V

Type

Steady Signal

AC Contact Rating

1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V

50/60 Hz

Rated Impulse Withstand Voltage

6 kV IEC 60947-1

Contact Type and Composition

1 NO + 1 NC

Conventional Free Air Thermal Current

10 A IEC 60947-5-1

Signalling Type

Steady

Short-Circuit Protection

10 A cartridge fuse gG IEC 60947-5-1

Shape Of Screw Head

Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm

Light Block Supply

Via integral transformer 1.2 VA 6 V

Ambient Air Temperature For Storage

-40 to 158Â°F (-40 to 70Â°C)

Electrical Shock Protection Class

Class II IEC 60536

Terminals Description ISO n°1

(11-12)NC; (13-14)NO

Product Certifications

CSA; UL Listed; GL; LROS (Lloyds register of shipping); BV; DNV

Electrical Durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Rated Operational Current

3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Operating Travel

0.06 in (1.5 mm) NC changing electrical state); 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)

Vibration Resistance

5 gn 2 to 500 Hz)IEC 60068-2-6

Head Type

Standard

Ambient Air Temperature For Operation

-40 to 158Â°F (-40 to 70Â°C)

Mechanical Durability

5000000 cycles

Bulb Base

BA 9s

Device Presentation

Basic sub-assemblies

Tightening Torque

7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1

Protective Treatment

Contact Operation

Slow-break

Product Or Component Type

Complete body/contact assembly and light block

Operating Force

2 N NC changing electrical state; 2.3 N NO changing electrical state

Contacts Usage

Standard

Operating Torque

0.44 lbf.in (0.05 N.m) NO changing electrical state

Rated Insulation Voltage

600 V 3)IEC 60947-1

Positive Opening

With IEC 60947-5-1 appendix K

Rated Supply Voltage

110 to 120 V AC 50/60 Hz

Shock Resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Contacts Material

Silver alloy (Ag/Ni)

Electrical Reliability

Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Connections - Terminals

Screw clamp terminals, Less than or Equal to 2 x 1.5 mmÂ² with cable end IEC 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mmÂ² without cable end IEC 60947-1

Terminals Description ISO nÂ°1

(11-12)NC; (13-14)NO

NEMA Enclosure Rating

1, 12, 13, 2, 3, 4, 4X

Compatible with Series

XB5

Lamp Color

Clear

Compatible Product Type

B9 Modules

Includes Bulb

Bulb Included

Terminal Connection Type

Screw Clamp

Description

Lamp Module and Contact Block, Color Clear, Contact Form 1NO/1NC, For Use With B9 Modules, Lamp Module Type Transformer, Lamp Module Voltage 110 to 120V AC, Lamp Type Incandescent, 22 mm, Lamp Voltage 6V AC, Replacement Lamp B9, Contact Rating 10 A @ 600V AC/DC, NEMA Contact Rating Designation A600, Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP20, Standards BV, CSA, DNV, GL, LROS, RoHS, UL Listed
