3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Signalling Type
Steady
Tightening Torque
7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1
Light Block Supply
Direct
Ambient Air Temperature For Operation
-40 to 158°F (-40 to 70°C)
Operating Force
2 N NC changing electrical state; 2.3 N NO changing electrical state
Shape Of Screw Head
Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm
Connections - Terminals
Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mm² without cable end IEC 60947-1
Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Bulb Base
Integral LED
Mechanical Durability
5000000 cycles
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Current Consumption
18 mA
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-2-6; 8 kV in free air (in insulating parts) IEC 61000-2-6
Surge Withstand
1 kV IEC 61000-4-5
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Electrical Shock Protection Class
Class II IEC 60536
Resistance To Fast Transients
2 kV IEC 61000-4-4
Device Presentation
Basic sub-assemblies
Contact Type and Composition
1 NO + 1 NC
Operating Travel
0.06 in (1.5 mm) NC changing electrical state); 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)
Service Life
100000 h at rated voltage and 25°C
Electromagnetic Emission
Class B IEC 55011
Rated Supply Voltage
24 V AC/DC 50/60 Hz
Contacts Usage
Standard
Electrical Reliability
Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Contact Operation
Slow-break
Supply Voltage Limits
19.2 to 30 V DC; 21.6 to 26.4 V AC
Protective Treatment
TH
Product Or Component Type
Complete body/contact assembly and light block
Operating Torque
0.44 lbf.in (0.05 N.m) NO changing electrical state
Rated Insulation Voltage
600 V 3)IEC 60947-1
Contacts Material
Silver alloy (Ag/Ni)
Light Source
Universal LED
Short-Circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
Vibration Resistance
5 gn 2 to 500 Hz)IEC 60068-2-6
Positive Opening
With IEC 60947-5-1 appendix K
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
Head Type
Standard
Product Certifications
CSA; LROS (Lloyds register of shipping); UL Listed; BV; GL; DNV
Terminals Description ISO n°1
(13-14)NO; (11-12)NC
Terminals Description ISO n°1
(13-14)NO; (11-12)NC
Compatible Product Type
Plastic Operators
Compatible with Series
XB5
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Includes Bulb
Bulb Included
Lamp Color
White
Terminal Connection Type
Screw Clamp
Description

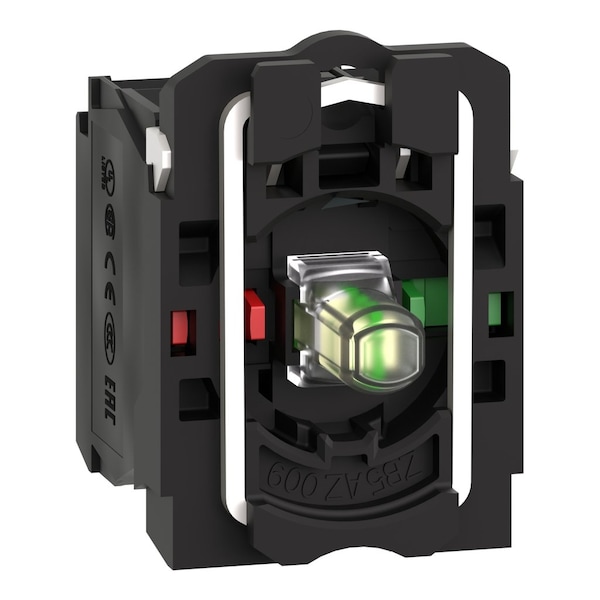

Lamp Module and Contact Block, Color White, Contact Form 1NO/1NC, For Use With Plastic, ZB5 Series, Lamp Module Type Full Voltage, Lamp Module Voltage 24V AC/DC, Lamp Type LED, 22 mm, Lamp Voltage 24V AC/DC, Contact Rating 10 A @ 600V AC/DC, NEMA Contact Rating Designation A600, Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP20, Standards BV, CSA, DNV, GL, LROS, RoHS, UL Listed
