  15. Lamp Module and Contact Block, 22mm, 1NO

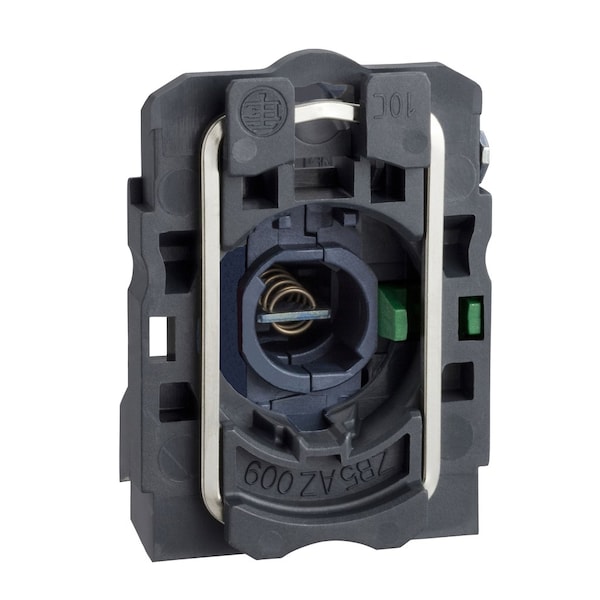

Schneider Electric Lamp Module and Contact Block, 22mm, 1NO ZB5AW061 - main

Lamp Module and Contact Block, 22mm, 1NO

  • Mfr # ZB5AW061

  • Zoro # G0368514

product price: $45.45
/ea

Key Features

Contact Rating
10 A @ 600V AC/DC
Voltage
250V
Size
22 mm
Lamp Type
Incandescent
Terminal Connection
Screw Clamp terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW061
Zoro #
G0368514
UPC #
785901373292
Country of Origin
France

Dimensions

Size
22 mm
Compatible Panel Cutout Diameter
22 mm

Details

Item
Lamp Module and Contact Block
Contact Rating
10 A @ 600V AC/DC
Voltage
250V
Lamp Type
Incandescent
Terminal Connection
Screw Clamp terminals
Contact Form
1NO
Replacement Lamp
B9
Color
Clear
Lamp Module Type
Full Voltage
Lamp Module Voltage
Less Than or Equal To 250V AC/DC
Basic Material
Plastic
Lamp Voltage
250V AC/DC
NEMA Contact Rating Designation
A600, Q600
Standards
BV, CSA, DNV, GL, LROS, RoHS, UL Listed
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
For Use With
B9 Modules
IP Rating
IP20
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Type
Steady Signal
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Compatible with Series
XB5
Includes Bulb
No Bulb Included
Compatible Product Type
B9 Modules
Terminal Connection Type
Screw Clamp

Description

Lamp Module and Contact Block, Color Clear, Contact Form 1NO, For Use With B9 Modules, Lamp Module Type Full Voltage, Lamp Module Voltage Less Than or Equal To 250V AC/DC, Lamp Type Incandescent, 22 mm, Lamp Voltage 250V AC/DC, Replacement Lamp B9, Contact Rating 10 A @ 600V AC/DC, NEMA Contact Rating Designation A600, Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP20, Standards BV, CSA, DNV, GL, LROS, RoHS, UL Listed
