  13. Lamp Module and Contact Block, 22mm, 1NO
Shop All Indicator Lights
Schneider Electric

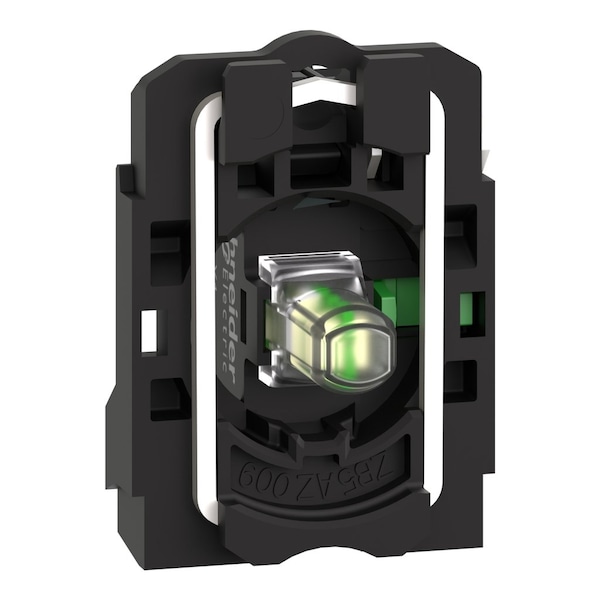

Lamp Module and Contact Block, 22mm, 1NO

product price: $64.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Contact Rating 10 A @ 600V AC/DC
  • Voltage 24V AC/DC
  • For Use With Plastic, ZB5 Series
  • Size 22 mm
  • Lamp Type LED
See all product information

Product Information

Dimensions

Size 22 mm
Compatible Panel Cutout Diameter 22 mm

Details

Item Lamp Module and Contact Block
Contact Rating 10 A @ 600V AC/DC
Voltage 24V AC/DC
For Use With Plastic, ZB5 Series
Lamp Type LED
Terminal Connection Screw Clamp terminals
Contact Form 1NO
Color White
Lamp Module Type Full Voltage
Lamp Module Voltage 24V AC/DC
Basic Material Plastic
IP Rating IP20
Standards BV, CSA, DNV, GL, LROS, RoHS, UL Listed
Lamp Voltage 24V AC/DC
NEMA Rating 1, 12, 13, 2, 3, 4, 4X
NEMA Contact Rating Designation A600, Q600
DC Contact Rating 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Type Steady Signal
Average Life 100000 hr
Hz 50/60 Hz
Current Consumption 18 mA
Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Product Certifications UL Listed; LROS (Lloyds register of shipping); GL; CSA; BV; DNV
Connections - Terminals Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mm² without cable end IEC 60947-1
Positive Opening Without
Bulb Base Integral LED
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Rated Insulation Voltage 600 V 3)IEC 60947-1
Contacts Material Silver alloy (Ag/Ni)
Mechanical Durability 5000000 cycles
Head Type Standard
Terminals Description ISO n°1 (13-14)NO
Tightening Torque 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1
Rated Supply Voltage 24 V AC/DC 50/60 Hz
Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-2-6; 8 kV in free air (in insulating parts) IEC 61000-2-6
Supply Voltage Limits 19.2 to 30 V DC; 21.6 to 26.4 V AC
Contact Type and Composition 1 NO
Service Life 100000 h at rated voltage and 25°C
Light Block Supply Direct
Vibration Resistance 5 gn 2 to 500 Hz)IEC 60068-2-6
Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Resistance To Fast Transients 2 kV IEC 61000-4-4
Light Source Universal LED
Resistance To Electromagnetic Fields 9.14 V/m (10 V/m) IEC 61000-4-3
Protective Treatment TH
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Reliability Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Operating Force 2.3 N NO changing electrical state
Ambient Air Temperature For Storage -40 to 158°F (-40 to 70°C)
Ambient Air Temperature For Operation -40 to 158°F (-40 to 70°C)
Contact Operation Slow-break
Contacts Usage Standard
Operating Torque 0.44 lbf.in (0.05 N.m) NO changing electrical state
Device Presentation Basic sub-assemblies
Signalling Type Steady
Shape Of Screw Head Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm
Operating Travel 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)
Electromagnetic Emission Class B IEC 55011
Product Or Component Type Complete body/contact assembly and light block
Surge Withstand 1 kV IEC 61000-4-5
Electrical Shock Protection Class Class II IEC 60536
Rated Operational Current 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description ISO n°1 (13-14)NO
Terminal Connection Type Screw Clamp
NEMA Enclosure Rating 1, 12, 13, 2, 3, 4, 4X
Compatible with Series XB5
Lamp Color White
Compatible Product Type Plastic Operators
Includes Bulb Bulb Included

Description

Lamp Module and Contact Block, Color White, Contact Form 1NO, For Use With Plastic, ZB5 Series, Lamp Module Type Full Voltage, Lamp Module Voltage 24V AC/DC, Lamp Type LED, 22 mm, Lamp Voltage 24V AC/DC, Contact Rating 10 A @ 600V AC/DC, NEMA Contact Rating Designation A600, Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP20, Standards BV, CSA, DNV, GL, LROS, RoHS, UL Listed
