Schneider Electric

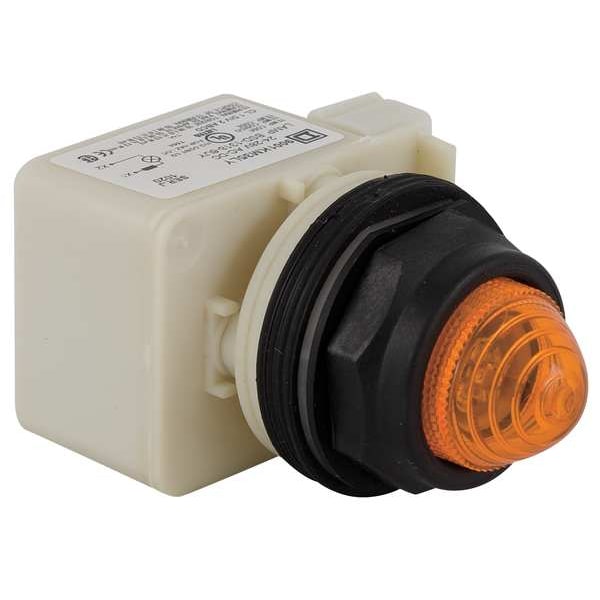

Pilot Light Complete, Amber, LED

original price: $135.76
21% off
new price: $106.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Color Amber
  • Lamp Type LED
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 30 mm
Manufacturer Warranty Length 18 mo
Panel Cutout Diameter 30 mm
Overall Depth 1.65 in
Overall Height 2.76 in
Overall Width 2.13 in

Details

Item Pilot Light
Voltage 120V AC
Color Amber
Lamp Type LED
Shape Round
Terminal Connection Screw Clamp
Lens Material Polycarbonate
Bezel Plastic
Lens Type Domed
Lamp Module Type Full Voltage
Basic Material Plastic
Lamp Voltage 120V AC
IP Rating IP66
Body Material Plastic
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6
Standards REACH, RoHS, UL 508, WEEE
Includes Light Module and LED Lamp
Lamp Voltage - Maximum 120 V AC/DC
Includes Lens Lens Included
Voltage Rating - Maximum 120 V AC/DC
Resistance Properties Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Lamp Color Amber
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X
Includes Push-To-Test No Push-To-Test Included
Includes Lamp Module Lamp Module Included
Lens Color Amber
Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Series 9001SK

Description

Pilot Light, Voltage 120V AC, Color Amber, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Domed, Lamp Voltage 120V AC, Replacement Lamps N/A, Body Material Plastic, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Includes Light Module and LED Lamp, Standards REACH, RoHS, UL 508, WEEE
