  15. Lamp Module and Contact Block, 22mm, 2NO

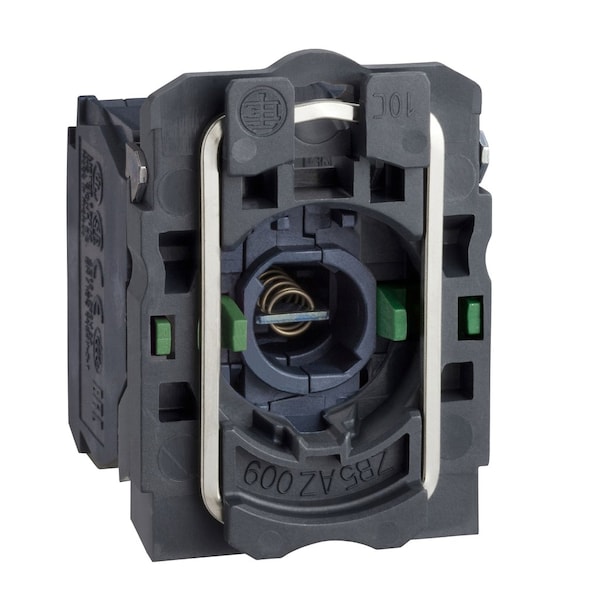

Schneider Electric Lamp Module and Contact Block, 22mm, 2NO ZB5AW063 - main

Lamp Module and Contact Block, 22mm, 2NO

  • Mfr # ZB5AW063

  • Zoro # G2481866

product price: $60.15
/ea

Key Features

Contact Rating
10 A @ 600V AC/DC
Voltage
250V
Size
22 mm
Lamp Type
Incandescent
Terminal Connection
Screw Clamp terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AW063
Zoro #
G2481866
UPC #
785901376408
Country of Origin
France

Dimensions

Size
22 mm
Compatible Panel Cutout Diameter
22 mm

Details

Item
Lamp Module and Contact Block
Contact Rating
10 A @ 600V AC/DC
Voltage
250V
Lamp Type
Incandescent
Terminal Connection
Screw Clamp terminals
Contact Form
2NO
Replacement Lamp
B9
Lamp Module Type
Full Voltage
Color
Clear
Lamp Module Voltage
Less Than or Equal To 250V AC/DC
Basic Material
Plastic
Lamp Voltage
250V AC/DC
For Use With
B9 Modules
Standards
BV, CSA, DNV, GL, LROS, RoHS, UL Listed
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
IP Rating
IP20
NEMA Contact Rating Designation
A600, Q600
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Type
Steady Signal
Short-Circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Vibration Resistance
5 gn 2 to 500 Hz)IEC 60068-2-6
Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Product Certifications
CSA; GL; DNV; BV; UL Listed; LROS (Lloyds register of shipping)
Bulb Base
BA 9s
Protective Treatment
TH
Ambient Air Temperature For Operation
-40 to 158°F (-40 to 70°C)
Rated Supply Voltage
Less than or Equal to 250 V
Operating Force
2.3 N NO changing electrical state
Product Or Component Type
Complete body/contact assembly and light block
Contacts Material
Silver alloy (Ag/Ni)
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical Shock Protection Class
Class II IEC 60536
Connections - Terminals
Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mm² without cable end IEC 60947-1
Device Presentation
Basic sub-assemblies
Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Positive Opening
Without
Light Source
Bulb not included
Contact Operation
Slow-break
Contact Type and Composition
2 NO
Operating Torque
0.44 lbf.in (0.05 N.m) NO changing electrical state
Electrical Reliability
Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Signalling Type
Steady
Mechanical Durability
5000000 cycles
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Operating Travel
0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)
Rated Insulation Voltage
600 V 3)IEC 60947-1
Contacts Usage
Standard
Tightening Torque
7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1
Shape Of Screw Head
Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm
Terminals Description ISO n°1
(11-12)NC
Light Block Supply
Direct Less than 2.4 W
Head Type
Standard
Terminals Description ISO n°1
(11-12)NC
Compatible with Series
XB5
Terminal Connection Type
Screw Clamp
Includes Bulb
No Bulb Included
Compatible Product Type
B9 Modules
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X

Description

Lamp Module and Contact Block, Color Clear, Contact Form 2NO, For Use With B9 Modules, Lamp Module Type Full Voltage, Lamp Module Voltage Less Than or Equal To 250V AC/DC, Lamp Type Incandescent, 22 mm, Lamp Voltage 250V AC/DC, Replacement Lamp B9, Contact Rating 10 A @ 600V AC/DC, NEMA Contact Rating Designation A600, Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP20, Standards BV, CSA, DNV, GL, LROS, RoHS, UL Listed
