  13. Lamp Module With Bulb 22 mm, Red
This item is Discontinued.

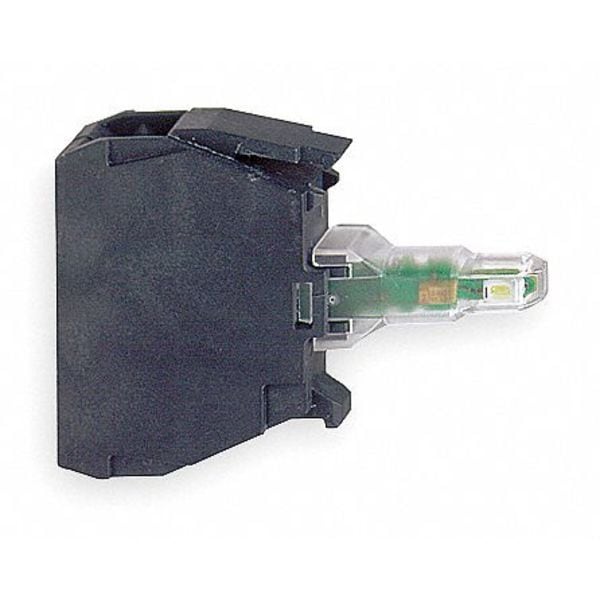

Schneider Electric Lamp Module With Bulb 22 mm, Red ZBVB4

Lamp Module With Bulb 22 mm, Red (Discontinued)

  • Mfr # ZBVB4
  • Zoro # G1663051
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZBVB4
Zoro #
G1663051
UPC #
785901355403
Country of Origin
France

Dimensions

Size
22 mm
Compatible Panel Cutout Diameter
22 mm

Details

Material of Construction
Plastic
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Lamp Voltage
24V AC/DC
Lamp Type
LED
Terminal Connection
Screw Clamp
Color
Red
Item
Lamp Module
Lamp Module Voltage
24V AC/DC
Standards
CE, CSA, UL Listed
For Use With
Schneider Electric 22mm Operators
IP Rating
IP20
Body Material
Plastic
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Product Or Component Type
Light block
Supply Voltage Limits
19.2 to 30 V DC; 21.6 to 26.4 V AC
Resistance To Fast Transients
2 kV IEC 61000-4-4
Shape Of Screw Head
Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm
Device Presentation
Basic element
Ambient Air Temperature For Operation
-40 to 158°F (-40 to 70°C)
Light Block Supply
Direct
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
Surge Withstand
1 kV IEC 61000-4-5
Electromagnetic Emission
Class B IEC 55011
Tightening Torque
7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) EN 60947-1
Bulb Base
Integral LED
Current Consumption
18 mA
Signalling Type
Steady
Connections - Terminals
Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end EN 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mm² without cable end EN 60947-1
Rated Supply Voltage
24 V AC/DC 50/60 Hz
Light Source
Protected LED
Product Certifications
CSA; UL Listed
Protective Treatment
TH
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
IP Degree Of Protection
IP20 IEC 60529
Service Life
100000 h at rated voltage and 25°C
Electrical Composition Code
M1; M2; M3; M4; M5; M6; M10; MF1; P1; P2; PF1
Mounting Of Block
Front mounting
Includes Bulb
Bulb Included
Terminal Connection Type
Screw Clamp Terminals
Compatible with Brand
Schneider
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X

Description

Lamp Module, Lamp Module Voltage 24V AC/DC, Red, Lamp Type LED, Lamp Voltage 24V AC/DC, Terminal Connection Screw Clamp, 22 mm, Plastic Material of Construction, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP20, Standards CE, CSA, UL Listed, For Use With Schneider Electric 22mm Operators
