Shop SCHNEIDER ELECTRIC

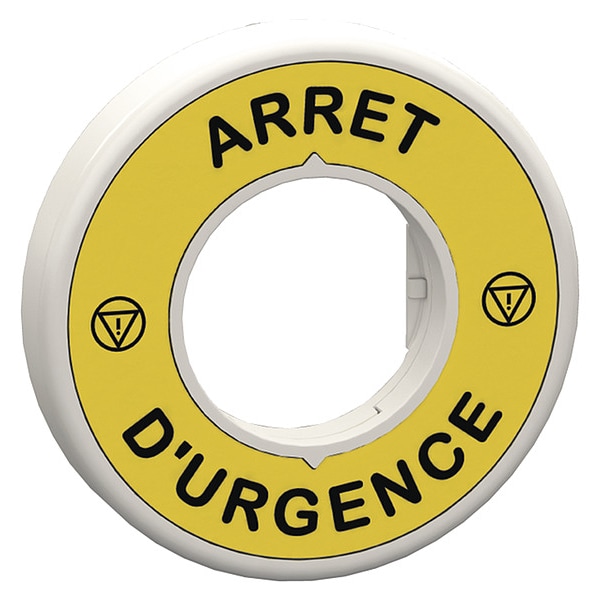

LegendRing, ArretD'Urgence, Blk/Ylw, Round

  • Mfr # ZBY9W2M130
  • Zoro # G3571873
product price:
$
43.65
/ea

Key Features

Material
Plastic
Height
60 mm
Width
9.3 mm
Legend/Background Color
Black/Yellow
Shape
Round
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ZBY9W2M130
Zoro #
G3571873
UPC #
-
Country of Origin
Indonesia
Item
Legend Ring
Material
Plastic
Legend/Background Color
Black/Yellow
Shape
Round
Legend
Arret D'Urgence
Standards
CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
Product Type
Legend Ring
Compatible with Series
XB4, XB5
Keyway Type
Tab
Background Color
Yellow
Legend Color
Black
Language
French
Current Consumption
14 mA
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Bulb Base
integral LED
Surge Withstand
1 kV IEC 61000-4-5
Ik Degree Of Protection
IK05 EN 50102
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Operator Additional Information
with illuminated ring
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Light Source Colour
red
Resistance To Electrostatic Discharge
4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Supply Voltage Limits
195-264 V AC
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Accessory / Separate Part Destination
emergency stop mushroom head push-button
Ambient Air Temperature For Operation
-40-70°C
Signalling Type
steady
Electromagnetic Emission
class B IEC 55011
Cap/Operator Or Lens Colour
red
Compatibility Code
XB4 || XB5
[Us] Rated Supply Voltage
230 to 240 V AC 50/60 Hz
Resistance To Fast Transients
2 kV IEC 61000-4-4
Device Presentation
intermediate ring
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Product Or Component Type
illuminated marked legend ring
Light Source
protected LED
Product Certifications
UL Listed || CSA
Ambient Air Temperature For Storage
-40-70°C
Shape Of Signaling Unit Head
round
Protective Treatment
TH
Electrical Insulation Class
class II IEC 61140
Marking
black ARRET D'URGENCE yellow
Shell Material
Plastic
Compatible Series
XB4, XB5

Description

Legend Ring, Round, Legend Arret D'Urgence, Legend/Background Color Black/Yellow, Material Plastic, Height 60 mm, Width 9.3 mm, Diameter 60 mm
