  15. LegendRing, EmergencyStop, Blk/Ylw, Round

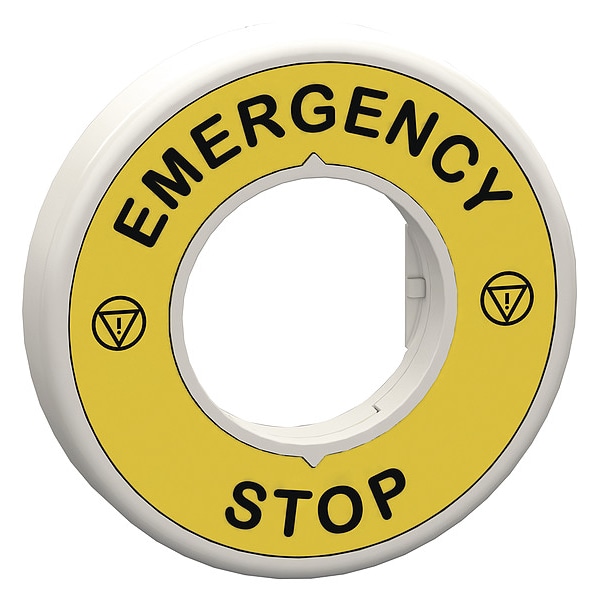

Schneider Electric LegendRing, EmergencyStop, Blk/Ylw, Round ZBY9W2B330 - main

LegendRing, EmergencyStop, Blk/Ylw, Round

  • Mfr # ZBY9W2B330

  • Zoro # G3572153

product price: $31.85
/ea

Key Features

Material
Plastic
Height
60 mm
Width
9.3 mm
Standards
CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
Legend/Background Color
Black/Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZBY9W2B330
Zoro #
G3572153
UPC #
-
Country of Origin
France

Dimensions

Height
60 mm
Width
9.3 mm
Diameter
60 mm
Label Dimensions
Ø 60 mm
Compatible Panel Cutout Diameter
22 mm
Manufacturer Warranty Length
18 mo
Overall Diameter
2 3/8 in

Details

Item
Legend Ring
Material
Plastic
Standards
CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
Legend/Background Color
Black/Yellow
Shape
Round
Legend
Emergency Stop
Product Type
Legend Ring
Ambient Air Temperature For Operation
-40-70°C
Compatibility Code
XB4 || XB5
Bulb Base
integral LED
Surge Withstand
1 kV IEC 61000-4-5
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Light Source
protected LED
Cap/Operator Or Lens Colour
red
Electrical Insulation Class
class II IEC 61140
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Product Certifications
UL Listed || CSA
Ik Degree Of Protection
IK05 EN 50102
Shape Of Signaling Unit Head
round
Protective Treatment
TH
Light Source Colour
red
Current Consumption
18 mA
Signalling Type
steady
Product Or Component Type
illuminated marked legend ring
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Device Presentation
intermediate ring
Marking
black EMERGENCY STOP yellow
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Resistance To Electrostatic Discharge
4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Operator Additional Information
with illuminated ring
[Ui] Rated Insulation Voltage
24 V 3)EN/IEC 60947-1
Resistance To Fast Transients
2 kV IEC 61000-4-4
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Ambient Air Temperature For Storage
-40-70°C
Electromagnetic Emission
class B IEC 55011
Supply Voltage Limits
19.2-30 V DC || 21.6-26.4 V AC
Accessory / Separate Part Destination
emergency stop mushroom head push-button
Legend Color
Black
Background Color
Yellow
Keyway Type
Tab
Compatible with Series
XB4, XB5
Language
English

Description

Legend Ring, Round, Legend Emergency Stop, Legend/Background Color Black/Yellow, Material Plastic, Height 60 mm, Width 9.3 mm, Diameter 60 mm
