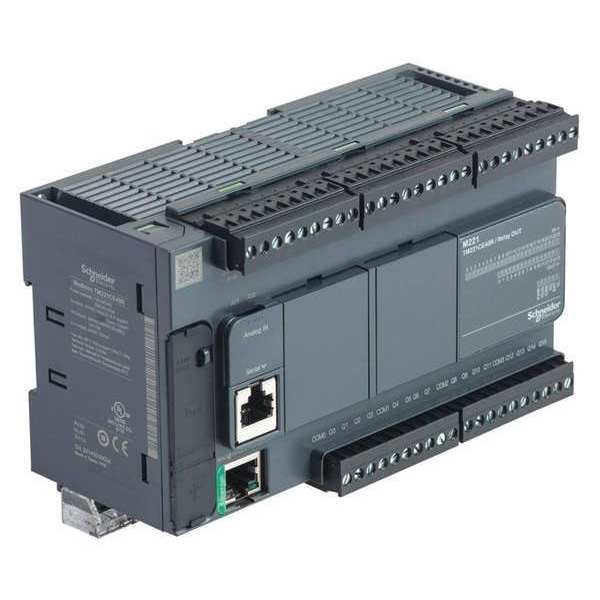

- Logic Controller, 2A, 16 Output, 100-240VAC
Logic Controller, 2A, 16 Output, 100-240VAC
Mfr # TM221CE40R
Zoro # G0270238
product price: $466.99
/ea
Free Shipping & Returns
Key Features
Output Type
(16) Relay
Number of Outputs
16
Number of Inputs
24
Features
SoMachine Basic Programming
Timers
Programmable
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamCustomers Also Purchased
Specifications
Product Information
MFR #
TM221CE40R
Zoro #
G0270238
UPC #
785901108979
Country of Origin
Taiwan, Province of China
Dimensions
Height
4.17 in
Depth
3 in
Width
6.42 in
Maximum Size Of Object Areas
8000 %MW memory words || 255 %TM timers || 512 %KW constant words || 255 %C counters || 512 %M memory bits
Overall Height
3.54 in
Overall Width
6.3 in
Overall Depth
2.76 in
Details
Item
PLC
Output Type
(16) Relay
Number of Outputs
16
Number of Inputs
24
Features
SoMachine Basic Programming
Timers
Programmable
Memory
256 KB
Amps
2 A
Counters
4
Input Voltage
100 to 240V AC
Display
LED
Slots
2
Port Type
Ethernet(10/100 mbps), Modbus Serial (1xRJ45 - RS232/RS485), SD Card, USB Mini (Prog.)
Clock
Yes
Response Time
35 µs turn-off, I2 to I5 input || 10 ms turn-on output || 10 ms turn-off output || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input
Standards
EN/IEC 60664-1 || EN/IEC 61131-2 || EN/IEC 61010-2-201
Product Type
Programmable Logic Controller
[Us] Rated Supply Voltage
100 to 240 V AC
Supply
serial)serial link supply 5 V, <200 mA
Data Backed Up
256 kB built-in flash memory backup of application and data
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Mechanical Durability
20000000 cycles relay output
Configurable Filtering Time
0 ms input || 3 ms input || 12 ms input
Port Ethernet
10BASE-T/100BASE-TX 1 100 m copper cable
Immunity To Microbreaks
10 ms
Transmission Rate
1.2 to 115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
Ambient Air Temperature For Storage
-25-70 °C
Protection Type
without protection 5 A
Communication Port Protocol
USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network || Ethernet
Maximum Cable Distance Between Devices
shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input
Local Signalling
for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for I/O state 1 LED per channel (green) || for SL 1 LED (green) || for ACT Ethernet network activity (green) || for Link (Link Status) Ethernet network link (yellow)
Reset Time
1 s
Battery Type
BR2032 lithium non-rechargeable 4 year(s)
Conversion Time
1 ms per channel + 1 controller cycle time analog input
Resistance To Fast Transients
2 kV EN/IEC 61000-4-4 power lines) || 2 kV EN/IEC 61000-4-4 relay output) || 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link)
Discrete Output Current
2A
Clock Drift
<= 30 s/month 25-25 °C
Exct Time For Event Task
60 µs response time
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Discrete Output Number
16 relay
Permitted Overload On Inputs
+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
Resistance To Magnetic Fields
30 A/m 50/60 Hz EN/IEC 61000-4-8
Marking
CE
Product Certifications
DNV-GL || EAC || ABS || cULus || LR || RCM || CSA || IACS E10
Surge Withstand
2 kV power lines (AC) common mode EN/IEC 61000-4-5 || 2 kV relay output common mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 || 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) common mode EN/IEC 61000-4-5
Resistance To Electrostatic Discharge
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Electrical Connection
removable screw terminal block for inputs || removable screw terminal block for outputs || terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal
Electromagnetic Emission
conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 || conducted emissions 120 to 69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || conducted emissions 79 to 63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz EN/IEC 55011
Communication Service
DHCP client || Modbus TCP client || Ethernet/IP adapter || Modbus TCP server || Modbus TCP slave device
Data Storage Equipment
2 GB SD card optional)
Execution Time For 1 Kinstruction
0.3 ms event and periodic task
Execution Time Per Instruction
0.2 µs Boolean
Backup Time
1 year 25 °C by interruption of power supply)
Input Impedance
3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input
Electrical Durability
100000 cycles AC-12, 120 V, 240 VA, resistive || 100000 cycles AC-12, 240 V, 480 VA, resistive || 300000 cycles AC-12, 120 V, 80 VA, resistive || 300000 cycles AC-12, 240 V, 160 VA, resistive || 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive || 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive || 100000 cycles DC-12, 24 V, 48 W, resistive || 300000 cycles DC-12, 24 V, 16 W, resistive || 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) || 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
Counting Input Number
4 fast input (HSC mode) 100 kHz 32 bits
Network Frequency
50/60 Hz
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Discrete Input Logic
sink or source (positive/negative)
Maximum Current Per Output Common
7A
Discrete I/O Number
40
Switching Frequency
20 switching operations/minute with maximum load
Lsb Value
10 mV
Minimum Load
1 mA 5 V DC relay output
Voltage State 0 Guaranteed
<= 5 V input
Control Signal Type
single phase || A/B || pulse/direction
Absolute Accuracy Error
+/- 1 % of full scale analog input
Supply Voltage Limits
85-264 V
Discrete Input Voltage
24 V
Discrete Output Type
relay normally open
Power Supply Output Current
0.52-0.52 A 5 V expansion bus || 0.24-0.24 A 24 V expansion bus
Output Voltage Limits
125 V DC || 277 V AC
Shock Resistance
98 m/s² 11 ms
Discrete Input Voltage Type
DC
Discrete Input Current
7 mA discrete input || 5 mA fast input
Pollution Degree
<= 2
Sensor Power Supply
24-24 V DC 250 mA supplied by the controller
Ip Degree Of Protection
IP20 with protective cover in place
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 to 2.7 GHz EN/IEC 61000-4-3
Vibration Resistance
3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
Maximum Power Consumption In Va
70 VA 100 to 240 V with max number of I/O expansion module || 41 VA 100 to 240 V without I/O expansion module
Maximum Number Of I/O Expansion Module
7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
Voltage State 1 Guaranteed
>= 15 V input
Memory capacity
256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
Integrated Connection Type
USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS232/RS485 || Ethernet RJ45
Product Or Component Type
logic controller
Inrush Current
40 A
Realtime Clock
with
Discrete Output Voltage
5 to 125 V DC || 5 to 250 V AC
Discrete Input Number
24 , discrete input IEC 61131-2 Type 1
Analogue Input Number
2 0 to 10 V
Insulation
between input and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs || between supply and ground 1500 V AC || between sensor power supply and ground 500 V AC || between input and ground 500 V AC || between output and ground 1500 V AC || between supply and internal logic 2300 V AC || between sensor power supply and internal logic 500 V AC || between output and internal logic 2300 V AC || between Ethernet terminal and internal logic 500 V AC || between supply and sensor power supply 2300 V AC
Regulation Loop
adjustable PID regulator up to 14 simultaneous loops
Ambient Air Temperature For Operation
-10-55 °C horizontal installation) || -10-35 °C vertical installation)
Analogue Input Resolution
10 bits
Environmental Characteristic
ordinary and hazardous location
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V 0.1 to 80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Storage Altitude
0-3000 m
Counter Function
Single phase; A/B; Pulse/direction
Time For Event Task
60 µs response time
Memory Capacity
2 GB
Current
2 A
Communication Protocol Method
Ethernet, USB
Output Circuit Voltage - Minimum
5 V AC/DC
AC Voltage Rating
100 to 240V AC
Input Type
(2) Analog, (24) Discrete
Clock Included
Clock Included
Output Circuit Current - Maximum
2 A
Number of Counters
4
Output Circuit Voltage - Maximum
125 V DC, 250 V AC
Mounting Style
DIN Rail
Display Type
LED
Communication Protocol
Modbus ASCII, Modbus RTU, SoMachine-Network
Input Circuit Current - Maximum
7 mA
Series
TM
Input Circuit Voltage - Maximum
24 V
Number of Slots
2
Description
PLC, Input Voltage 100 to 240V AC, Output Type (16) Relay, 2 A Amps, 2 Slots, Number of Inputs 24, Number of Outputs 16, Counters 4, Timers Programmable, Yes Clock, LED Display, Port Type Ethernet(10/100 mbps), Modbus Serial (1xRJ45 - RS232/RS485), SD Card, USB Mini (Prog.), Memory 256 KB, Depth 3 in, Height 4.17 in, Width 6.42 in
