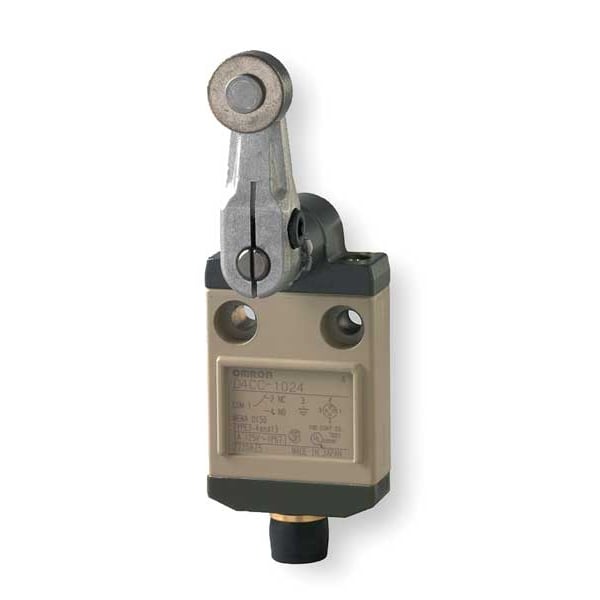

Limit Switch, Plunger, Roller, SPDT, 1A at 120V AC, Actuator Location: Side

  • Mfr # D4CC1024

  • Zoro # G2175993

product price:
$
182.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
1A at 120V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D4CC1024
Zoro #
G2175993
UPC #
-
Country of Origin
Japan

Dimensions

Roller Width
0.28 in
Body Depth - Limit Switch
0.63 in
Depth
0.63"
Height
4.77"
Roller Dia.
0.69 in
Width
1.57"
Body Height - Limit Switch
2.13 in
Body Width - Limit Switch
1.33 in
Arm Width
0.69 in
Arm Depth
0.54 in
Manufacturer Warranty Length
1 yr
Roller Diameter
0.69 in
Arm Length - Maximum
1.84 in
Body Depth
0.63 in
Body Height
2.13 in
Mounting Hole Diameter
0.2 in
Body Width
1.33 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
1A at 120V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
AC Contact Rating
1 A @ 125 V
Mounting Hole - Limit Switch
(2) 0.20 in dia
Actuator Style
Roller Lever Plunger
Electrical Connection
4-Pin M12 Male Connector
Boot Sealed Actuator - Limit Switch
No
Contact Form
SPDT
Actuator Location (Limit Switch)
Side
Stem Thread - Limit Switch
No Stem
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
NEMA Rating
13, 3, 4
Body Style (Limit Switch)
Miniature
Roller Material
Stainless Steel
Mounting Hole Spacing - Limit Switch
0.98 in
Limit Switch Style
General Purpose Limit Switch
Operating Force
5.7 N-m
Voltage Rating
120VAC
Number of Poles
1
Body Material
Aluminum
Standards
CSA, UL Listed
Contact Form - Limit Switch
SPDT
Series
D4CC
Movement
Side
Basic Actuator Style (Limit Switch)
Plunger
Travel
Maximum Pre-Travel 10 Degrees , Minimum Over-Travel 50 Degrees
DC Contact Rating
Not Rated
IP Rating
IP67
Actuator Style (Limit Switch)
Plunger, Roller
Boot Sealed Actuator (Limit Switch)
No
Amps
1
Actuator Location
Side
Wiring Entry
Connector
Operating Temp. Range
-14 Degrees to 158 Degrees F
Differential Travel
3 Degrees
Arm Material
Aluminum
Roller Adjustability
Fixed
Number of Mounting Holes
2
Includes Actuator
Actuator Included
Total Travel
0.19 in
Body Configuration
Plug-In
Operating Temperature - Minimum
14 Degrees F
Operating Temperature - Maximum
158 Degrees F
Plunger Adjustability
Fixed
Arm Adjustability
Fixed
Directional Movement
CCW/CW
Pretravel
10 Degrees +/- 3 Degrees
Mounting Style
Surface
Operating Force - Maximum
5.69 N
Roller Position
Side
Mounting Hole Vertical Center to Center Distance
25 mm
Mounting Hole Horizontal Center to Center Distance
25 mm
Overtravel
50 Degrees
Boot Sealed Actuator
No Boot Included
Action
Momentary
NEMA Enclosure Rating
13, 3, 4

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 1A @ 120V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 2.13 in, Body Width - Limit Switch 1.33 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, Mounting - Limit Switch Surface
