Shop SCHNEIDER ELECTRIC

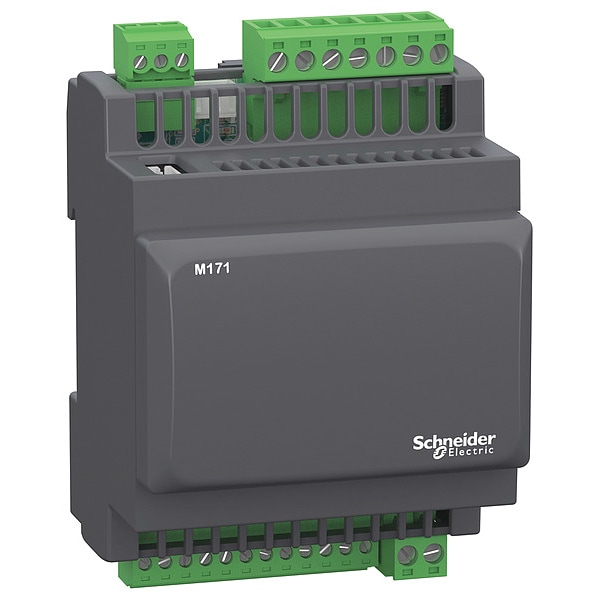

Logic Controller, 5 Inputs, 9 Outputs

  • Mfr # TM171OBM14R

  • Zoro # G3461422

product price:  $231.99
/ea
Free Shipping & Returns

Key Features

Output Type
(4) Digital, (5) Analog
Number of Outputs
9
Number of Inputs
5
Features
Volt-Free Contacts, Relative Humidity 10 and 90% Non-Condensing
Display
No Display
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TM171OBM14R
Zoro #
G3461422
UPC #
606480752735
Country of Origin
Korea, Republic of

Dimensions

Depth
2.43 in
Width
2.76 in
Height
3.43 in
Overall Depth
2.43 in
Overall Height
3.43 in
Overall Width
2.76 in

Details

Item
PLC
Output Type
(4) Digital, (5) Analog
Number of Outputs
9
Number of Inputs
5
Features
Volt-Free Contacts, Relative Humidity 10 and 90% Non-Condensing
Display
No Display
Description/Special Features
Modicon M171 Optimized Blind 14 I/Os Modbus 100-240Vac, product specific application HVAC and pumping solution, contacts usage Volt-free contacts, Discount Schedule PC12, Environmental Disclosure Product Environmental Profile, mounting support DIN rail, relative humidity 10¿90 % non-condensing
Port Type
1 LAN Expansion Bus, 1 RS485
Slots
1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link
Input Voltage
100 to 240V AC
Amps
2 A
Timers
Programmable
Product Type
Programmable Logic Controller
Upgradeability
Upgradeable through digital modules and upgraded components
Discrete Output Number
1 relay outputs SPDT with independent common || 3 relay outputs SPST with same common
Analogue Output Number
2 voltage 0 to 10 V || 2 PWM/PPM 20 kHz, 12 V, 35 mA || 1 current 0 to 20 mA/4 to 20 mA
Discrete Output Current
2 A relay
Analogue Input Type
NTC temperature probe - 50 to 100 °C 0.1 °C || Pt 1000 temperature probe - 50 to 400 °C 0.1 °C || current 0 to 20 mA/4 to 20 mA || voltage 0 to 1 V || voltage 0 to 10 V ratiometric) || voltage 0 to 5 V
Product Specific Application
HVAC and pumping solution
Discrete Input Logic
sink or source (positive/negative)
Sensor Power Supply
12-12 V DC 85 mA
Contacts Usage
volt-free contacts
Number of Inputs/Outputs
14
Number Of Port
1 LAN expansion bus || 1 RS485 - screw terminal block Modbus serial link)
Analogue Input Number
2 configurable || 3 analog input NTC
Discrete Input Number
2
Input/Output Number
5 analog output || 4 digital output || 5 analog input
Product Or Component Type
controller
[Us] Rated Supply Voltage
100 to 240 V
Input Circuit Current - Maximum
20 mA
Current
2 A
Display Type
No Display
Input Type
(5) Analog
Output Circuit Voltage - Minimum
0 V
Series
TM
Input Circuit Voltage - Maximum
10 V
Input Circuit Current - Minimum
4 mA
Mounting Style
DIN Rail
Clock Included
Clock Included
Input Circuit Voltage - Minimum
0 V
Output Circuit Current - Maximum
2 A
Output Circuit Voltage - Maximum
10 V
AC Voltage Rating
100 to 240V AC

Description

PLC, Input Voltage 100 to 240V AC, Output Type (4) Digital, (5) Analog, 2 A Amps, 1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link Slots, Number of Inputs 5, Number of Outputs 9, Timers Programmable, No Display Display, Port Type 1 LAN Expansion Bus, 1 RS485
