Built-In Epsom Flash Memory, Zelio Soft Programming Software included, (2) Programming Languages (FBD or Ladder), Malfunctions Diagnosing Display, Simple Programming
Counters
16
Clock
Yes
Display
LCD
Input Voltage
100 to 240V AC
Timers
16
Amps
8 A
Response Time
50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50 to 255 ms FBD from state 0 to state 1)discrete input || 50 to 255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) solid || screw terminals, 1 x 0.25 to 1 x 2.5 mm² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.2 to 2 x 1.5 mm² AWG 24 to AWG 16) solid || screw terminals, 2 x 0.25 to 2 x 0.75 mm² AWG 24 to AWG 18) flexible with cable end
Overvoltage Category
III EN/IEC 60664-1
Discrete Input Frequency
57 to 63 Hz || 47 to 53 Hz
Contacts Type And Composition
NO relay output
Cycle Time
6-90 ms
Voltage State 0 Guaranteed
<= 40 V discrete input
Maximum Supply Current
100 mA 100 V without extension) || 50 mA 240 V without extension)
Operating Rate In Hz
0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Checks
program memory on each power up
Environmental Characteristic
EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2
against inversion of terminals (control instructions not executed)
Backup Time
10 years 25 °C
Pollution Degree
2 EN/IEC 61131-2
Relative Humidity
95-95 % without condensation or dripping water
Output Voltage Limits
5 to 30 V DC relay output) || 24 to 250 V AC
Mounting Style
DIN Rail
Display Type
LCD
Number of Timers
16
Input Circuit Current - Maximum
0.6 mA
Output Circuit Current - Maximum
8 A
Clock Included
Clock Included
Output Circuit Voltage - Maximum
30 V DC, 250 V AC
Current
8 A
Input Circuit Voltage - Minimum
100 V AC
Number of Counters
16
Input Circuit Voltage - Maximum
240 V AC
Series
SR2
Output Circuit Voltage - Minimum
5 V DC, 24 V AC
Input Type
(12) Discrete
AC Voltage Rating
100 to 240V AC
Description

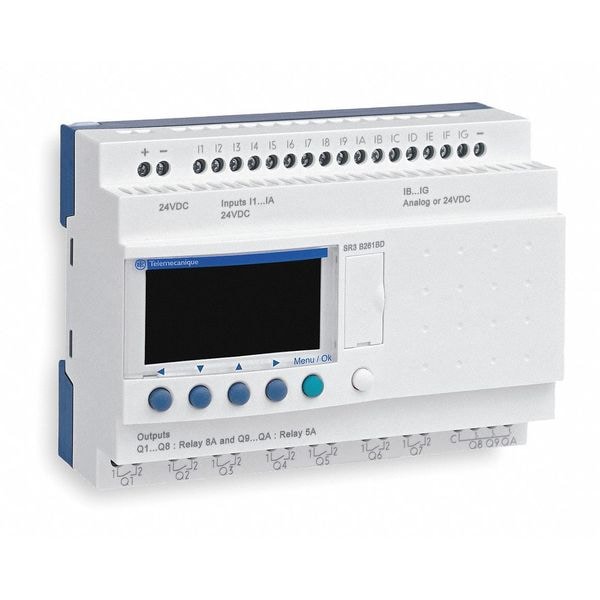

Compact Smart Relay, Input Voltage 100 to 240V AC, Output Type (8) Relay, 8 A Amps, Number of Inputs 12, Number of Outputs 8, Counters 16, Timers 16, Yes Clock, LCD Display, Depth 2.34 in, Height 4.24 in, Width 4.91 in
