Features
Built-In Epsom Flash Memory, Zelio Soft Programming Software included, (2) Programming Languages (FBD or Ladder), Malfunctions Diagnosing Display, Simple Programming
Input Voltage
100 to 240V AC
Response Time
50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50 to 255 ms FBD from state 0 to state 1)discrete input || 50 to 255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
Standards
EN/IEC 60068-2-27 Ea, EN/IEC 60068-2-6 FC, EN/IEC 61000-4-11, EN/IEC 61000-4-12, EN/IEC 61000-4-2 Level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-4 Level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 Level 3
Product Type

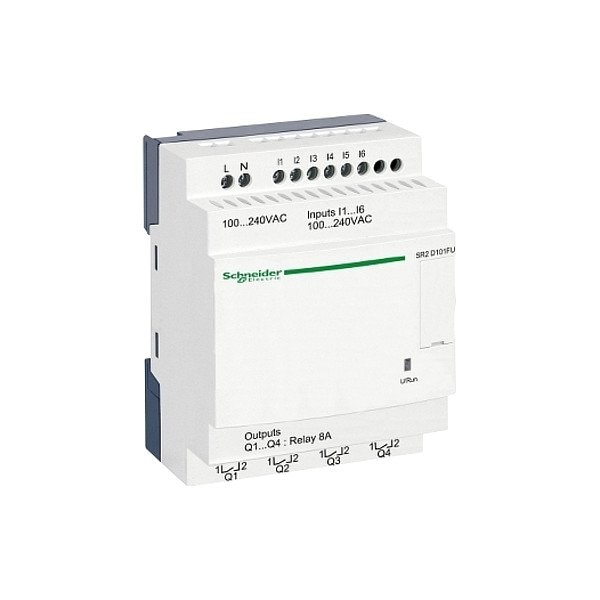

Compact Smart Relay
Product Certifications
GOST || C-tick || UL || GL || CSA
Operating Altitude
6561.68 ft (2000 m)
Power Consumption In Va
7 VA without extension
Voltage State 1 Guaranteed
>= 79 V discrete input
Environmental Characteristic
EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2
Product Or Component Type
compact smart relay
Switching Capacity In Ma
>= 10 mA 12 V relay output)
Voltage State 0 Guaranteed
<= 40 V discrete input
Current State 0 Guaranteed
<= 0.5 mA discrete input)
Checks
program memory on each power up
Disturbance Radiated/Conducted
class B EN 55022-11 group 1
Ambient Air Temperature For Storage
-40-70 °C
Supply Frequency
50/60 Hz
Contacts Type And Composition
NO relay output
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1 and EN/IEC 60664-1
[Us] Rated Supply Voltage
100 to 240 V AC
Operating Rate In Hz
0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Ambient Air Temperature For Operation
-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Overvoltage Category
III EN/IEC 60664-1
Maximum Supply Current
30 mA 240 V without extension) || 80 mA 100 V without extension)
Output Thermal Current
8 A for all 4 outputs relay output
Maximum Altitude Transport
3048 m
Input Impedance
350 kOhm discrete input
Output Voltage Limits
5 to 30 V DC relay output) || 24 to 250 V AC
Relative Humidity
95-95 % without condensation or dripping water
Discrete Input Current
0.6 mA
Pollution Degree
2 EN/IEC 61131-2
Discrete Input Frequency
47 to 53 Hz || 57 to 63 Hz
Clock Drift
12 min/year 0-55 °C || 6 s/month 25-25 °C
Immunity To Microbreaks
10 ms
Electrical Durability
AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1
Tightening Torque
0.5 N.m
Mechanical Durability
10000000 cycles relay output
Backup Time
10 years 25 °C
Protection Type
against inversion of terminals (control instructions not executed)
Ip Degree Of Protection
IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Current State 1 Guaranteed
>= 0.17 mA discrete input)
Number Or Control Scheme Lines
240-240 ladder
Connections - Terminals
screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) solid || screw terminals, 1 x 0.25 to 1 x 2.5 mm² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.2 to 2 x 1.5 mm² AWG 24 to AWG 16) solid || screw terminals, 2 x 0.25 to 2 x 0.75 mm² AWG 24 to AWG 18) flexible with cable end
Discrete Input Voltage
100 to 240 V AC
Supply Voltage Limits
85-264 V
Output Circuit Voltage - Maximum
30 V DC, 250 V AC
AC Voltage Rating
100 to 240V AC
Output Circuit Voltage - Minimum
5 V DC, 24 V AC
Input Circuit Current - Maximum
0.6 mA
Output Circuit Current - Maximum
8 A
Clock Included
Clock Not Included
Input Circuit Voltage - Minimum
100 V AC
Input Circuit Voltage - Maximum
240 V AC
