  13. LongHandleSelectorSwitch, Black, 2Pos, 30mm

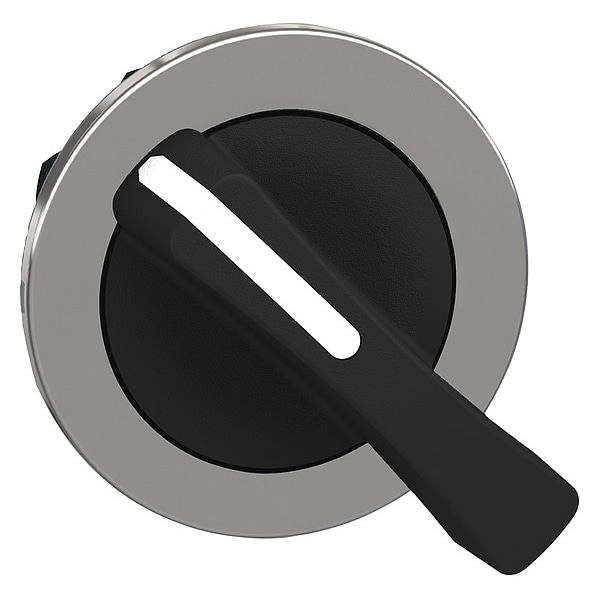

Schneider Electric LongHandleSelectorSwitch, Black, 2Pos, 30mm ZB4FJ4 - main

LongHandleSelectorSwitch, Black, 2Pos, 30mm

  • Mfr # ZB4FJ4

  • Zoro # G3546375

product price: $24.15
/ea

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Extended Lever
Action
Maintained/Momentary
Cam
No Cam Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4FJ4
Zoro #
G3546375
UPC #
-
Country of Origin
France

Dimensions

Size
30 mm
Cad Overall Height
43 mm
Cad Overall Depth
47 mm
Cad Overall Width
36.6 mm
Mounting Diameter
30.5 mm
Panel Cutout Diameter
30 mm

Details

Item
Long-Handled Selector Switch
Basic Material
Metal
Type of Operator
Extended Lever
Action
Maintained/Momentary
Cam
No Cam Included
Operator Head Material
Plastic
Operator Color
Black
NEMA Rating
12, 13, 4, 4X
Position
2
Bezel Material
Chrome Plated Metal
IP Rating
IP66, IP67, IP69, IP69K
Switch Operation @ Position C
No Third Position
Standards
CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Series
XB4
Key Number
No Key
Switch Operation @ Position D
No Fourth Position
Operator Position Information
2 positions 90°
Mechanical Durability
1000000 cycles
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Product Or Component Type
head for selector switch
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Operator Profile
black long handle
Device Short Name
ZB4F
Operator Additional Information
non padlockable
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Product Certifications
UL Listed || CSA || CCC || EAC
Overvoltage Category
class I IEC 60536
Shape Of Signaling Unit Head
round
Device Presentation
basic element
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Operation
-40-70°C
Head Type
built-in-flush
Ik Degree Of Protection
IK06 IEC 50102
Protective Treatment
TH
Operator Head Type
Long-Handled Knob
Hazardous Location Specification
Not Rated
Switch Function @ 3rd Position
No Third Position
Number of Positions
2
Operator Illumination
Non-Illuminated
Operator Head Color
Black
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Switch Function @ 4th Position
No Fourth Position

Description

Long-Handled Selector Switch, 30 mm, 2 Position, Maintained/Momentary Action, Extended Lever Type of Operator, Operator Color Black, Operator Head Material Plastic, Bezel Material Chrome Plated Metal, NEMA Rating 12, 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508, Key Number No Key

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
