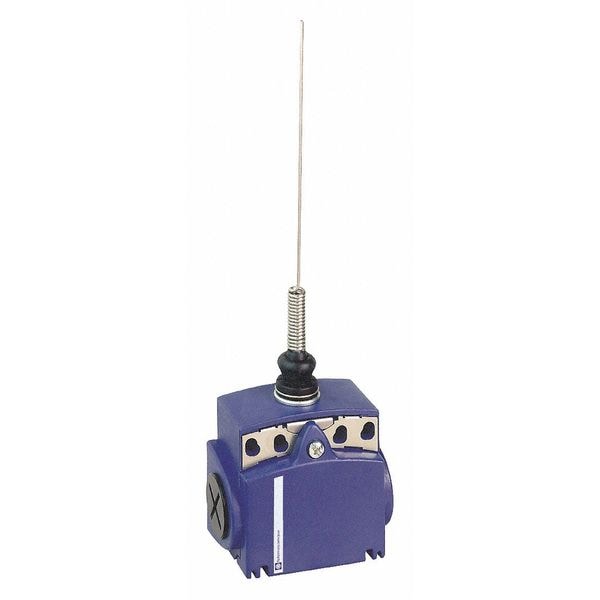

Telemecanique Sensors Limit switch, Wobble Stick, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKT2106N12 - main

Limit switch, Wobble Stick, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKT2106N12

  • Zoro # G1603953

product price:  $153.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XCKT2106N12
Zoro #
G1603953
UPC #
785901269595
Country of Origin
United States

Dimensions

Body Depth - Limit Switch
1.18 in
Width
2.28"
Actuator Length - Limit Switch
5.19 in
Height
2.00"
Actuator Length
5.19"
Arm Width
0.05 in
Body Width - Limit Switch
2.28 in
Depth
1.18"
Body Height - Limit Switch
2.0 in
Mounting Hole Diameter
0.17 in
Body Depth
1.18 in
Manufacturer Warranty Length
18 mo
Overall Width
3.12 in
Body Height
2 in
Body Width
2.28 in

Details

Item
Limit switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Operating Temp. Range
-13 Degrees to 158 Degrees F
Contact Form
1NO/1NC
Arm Material
Steel
Electrical Connection
Screw Clamp Terminals
Body Style (Limit Switch)
Miniature
Voltage Rating
240VAC/DC
Movement
Any Direction
DC Contact Rating
0.27 A @ 250 V
Wiring Entry
1/2 in NPT
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Stem Thread - Limit Switch
No Stem
AC Contact Rating
10 A @ 240 V
NEMA Rating
1, 12, 13, 2, 4, 6
Series
XCKT
Travel
90 Degrees
Actuator Style (Limit Switch)
Wobble Stick
Body Material
plastic
Limit Switch Style
General Purpose Limit Switch
Amps
10
Boot Sealed Actuator (Limit Switch)
No
Standards
CE, CSA, UL Listed
Boot Sealed Actuator - Limit Switch
No
Actuator Location
Top
Actuator Style
Cat Whisker
Contact Form - Limit Switch
1NC/1NO
Mounting Hole Spacing - Limit Switch
1.57 in
Mounting Hole - Limit Switch
(2) 0.17 in dia
Actuator Location (Limit Switch)
Top
Basic Actuator Style (Limit Switch)
Wobble Stick
Operating Force
0.9 in-lb
IP Rating
IP66, IP67
Certification
CSA || CCC || UL
Head Material
zamak
Special Features
multi-directional approach
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Actuation Type
by any moving part
Head Type
multi-directional head
Short Circuit Protection
10 A cartridge fuse gG
Mechanical Durability
5000000 cycles
Min. Actuation Velocity Horizontal
1 m/s
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Contact Action
snap action
Mounting Style
Surface
Directional Movement
Omnidirectional
Operating Temperature - Minimum
-13 Degrees F
Boot Sealed Actuator
No Boot Included
Mounting Hole Horizontal Center to Center Distance
40 mm
Operating Torque - Maximum
1.15 in-lb
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Number of Mounting Holes
4
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Number Of Poles
2
Type Of Operator
spring return cat''s whisker

Description

Limit Switch, Actuator Style - Limit Switch Wobble Stick, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 5.19 in, Body Height - Limit Switch 2 in, Body Width - Limit Switch 2.28 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
