- Item

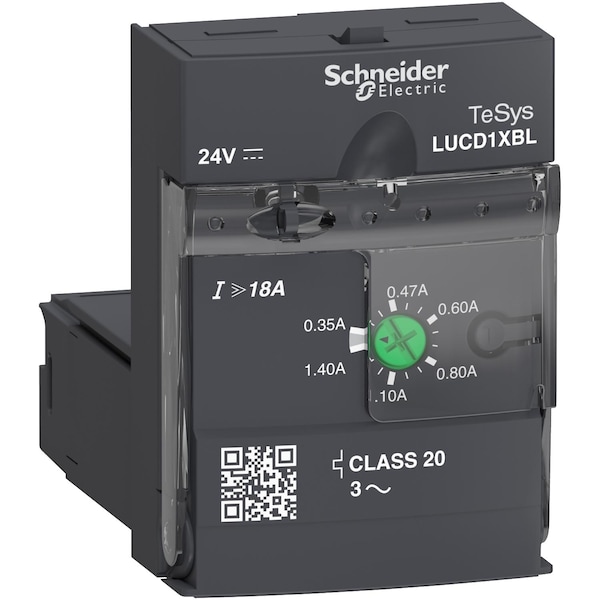

- Advanced Control Unit
- Coil Voltage
- 24V DC
- Standards
- EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier
- Features
- Manual reset; Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Earth fault protection; Free of Halogen, Mercury & Pvc Free; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
- Operating Voltage
- 690V AC
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6, 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Operating Time
- 35 ms opening with LUB12 control circuit, 35 ms opening with LUB32 control circuit, 35 ms opening with LUB38 control circuit, 70 ms closing with LUB12 control circuit, 70 ms closing with LUB32 control circuit, 70 ms closing with LUB38 control circuit
- Typical Current Consumption
- 130 mA 24 V DC I maximum while closing with LUB12, 220 mA 24 V DC I maximum while closing with LUB32, 220 mA 24 V DC I maximum while closing with LUB38, 60 mA 24 V DC I rms sealed with LUB12, 80 mA 24 V DC I rms sealed with LUB32, 80 mA 24 V DC I rms sealed with LUB38
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27
- Operating Altitude
- 6561.68 ft (2000 m)
- Compatibility Code
- LUCD
- Immunity To Radioelectric Fields
- 10 V IEC 61000-4-6
- Ambient Air Temperature For Storage
- -40-85°C
- Heat Dissipation
- 2-2 W control circuit with LUB12, 3-3 W control circuit with LUB32, 3-3 W control circuit with LUB38
- Device Short Name
- LUCD
- Resistance To Electrostatic Discharge
- 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2
- Tripping Threshold
- 14.2 x Ir +/- 20 %
- Control Circuit Voltage Limits
- 20...27 V DC 24 V in operation, 14.5 V DC 24 V drop-out
- Protective Treatment
- TH IEC 60068
- Thermal Overload Class
- class 20 40-60 Hz -25-70°C IEC 60947-6-2, class 20 40-60 Hz -25-70°C UL 508
- Fire Resistance
- 960°C parts supporting live components IEC 60695-2-12, 650°C IEC 60695-2-12
- Immunity To Microbreaks
- 3 ms
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Product Name
- TeSys Ultra
- Utilisation Category
- AC-43, AC-41, AC-44
- Range of Product
- TeSys Ultra
- Fixing Mode
- plug-in (front face)
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Thermal Protection Adjustment Range
- 0.35-1.4 A
- Safe Separation Of Circuit
- 400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
- Control Circuit Voltage
- 24 V DC
- Main Function Available
- Manual reset; Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Earth fault protection
- Phase Failure Sensitivity
- Yes
- Rated Insulation Voltage
- 690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1
- Motor Power KW
- 0.25 kW 400 to 440 V AC 50/60 Hz
- IP Degree Of Protection
- IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947-6-2
- Compatible Manufacturer Model Number
- LUB12, LUB32, LUB38, LUB120, LUB320, LUB380, LU2B12BL, LU2B32BL, LU2B38BL
- Maximum Overload Relay Current Setting
- 1.4 A
- Maximum Operating Temperature
- 70 Degrees C
- Frequency
- 40 to 60 Hz
- Phase
- Three
- Reset Type
- Manual
- Minimum Operating Temperature
- -25 Degrees C
