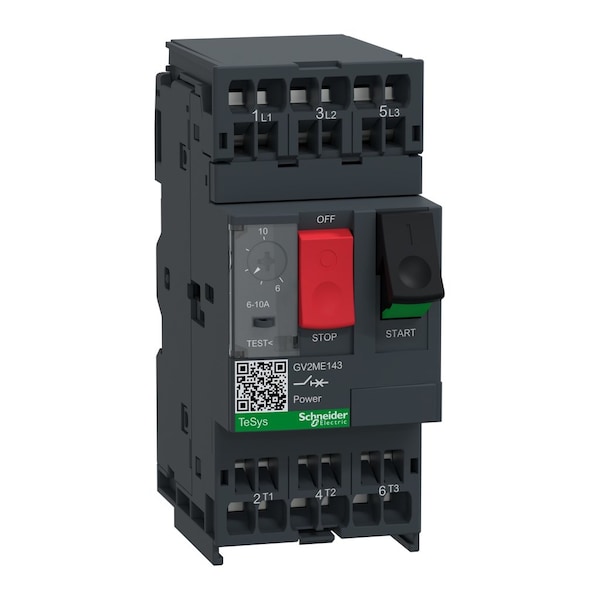

Schneider Electric Manual Motor Starter, 3 P, Push Button, 10 A GV2ME143 - main

Manual Motor Starter, 3 P, Push Button, 10 A

  • Mfr # GV2ME143

  • Zoro # G0562031

product price:  $227.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
10 A
Series
TeSys Deca
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GV2ME143
Zoro #
G0562031
UPC #
785901212171
Country of Origin
France

Dimensions

Overall Depth
78.5 mm
Overall Width
45 mm
Overall Height
101 mm

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
10 A
Series
TeSys Deca
Standards
EN/IEC 60947-2 || EN/IEC 60947-4-1
Color
dark grey
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Phase Failure Sensitivity
yes IEC 60947-4-1
Range
TeSys Deca
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Fire Resistance
960°C IEC 60695-2-11
Climatic Withstand
IACS E10
Trip Unit Technology
thermal-magnetic
Power Dissipation Per Pole
2.5 W
Product Name
TeSys GV2 || TeSys Deca
Ik Degree Of Protection
IK04
Motor Power Kw
3-3 kW 400/415 V AC 50/60 Hz || 4-4 kW 400/415 V AC 50/60 Hz || 4-4 kW 500 V AC 50/60 Hz || 5.5-5.5 kW 500 V AC 50/60 Hz
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5 to 150 Hz
Rated Duty
continuous IEC 60947-4-1
Ambient Air Temperature For Storage
-40-80°C
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Magnetic Tripping Current
138-138 A
Network Type
AC
Device Application
motor protection
Device Short Name
GV2ME
Thermal Protection Adjustment Range
6-10 A IEC 60947-4-1
Operating Altitude
6561.68 ft (2000 m)
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 100% 500 V AC 50/60 Hz IEC 60947-2; 75% 690 V AC 50/60 Hz IEC 60947-2
Electrical Operating Durability
100,000
IP Rating
IP20
Maximum Voltage Rating
690V AC
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-4 Degrees F
Mechanical Operating Durability
100,000

Description

Manual Starter 600Vac 10Amp Iec
