  13. Manual Motor Starter, 3 P, Push Button, 6.3 A

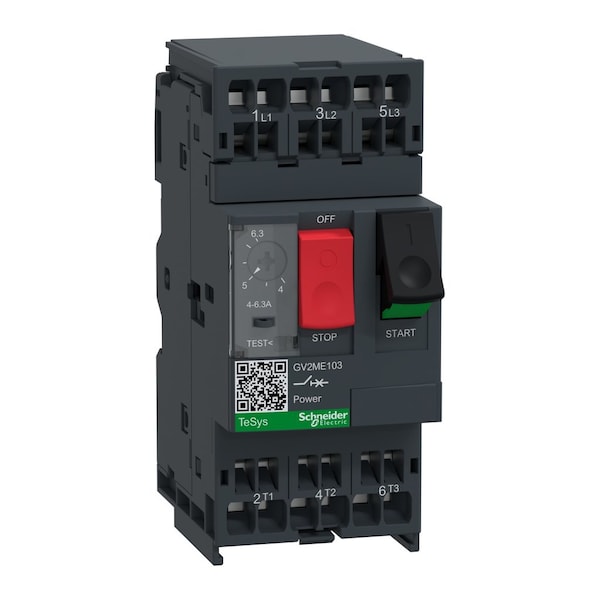

Schneider Electric Manual Motor Starter, 3 P, Push Button, 6.3 A GV2ME103 - main

Manual Motor Starter, 3 P, Push Button, 6.3 A

  • Mfr # GV2ME103

  • Zoro # G0851831

product price: $208.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Current AC
6.3 A
Series
TeSys Deca
Standards
EN/IEC 60947-2 || EN/IEC 60947-4-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV2ME103
Zoro #
G0851831
UPC #
785901212157
Country of Origin
France

Dimensions

Overall Depth
78.5 mm
Overall Width
45 mm
Overall Height
101 mm

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Current AC
6.3 A
Series
TeSys Deca
Standards
EN/IEC 60947-2 || EN/IEC 60947-4-1
Color
dark grey
Ik Degree Of Protection
IK04
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Motor Power Kw
2.2-2.2 kW 400/415 V AC 50/60 Hz || 3-3 kW 500 V AC 50/60 Hz
Climatic Withstand
IACS E10
Power Dissipation Per Pole
2.5 W
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Operating Altitude
6561.68 ft (2000 m)
Device Application
motor protection
Trip Unit Technology
thermal-magnetic
Rated Duty
continuous IEC 60947-4-1
Magnetic Tripping Current
78-78 A
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5 to 150 Hz
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Thermal Protection Adjustment Range
4-6.3 A IEC 60947-4-1
Phase Failure Sensitivity
yes IEC 60947-4-1
Range
TeSys Deca
Device Short Name
GV2ME
Product Name
TeSys GV2 || TeSys Deca
Fire Resistance
960°C IEC 60695-2-11
Ambient Air Temperature For Storage
-40-80°C
Network Type
AC
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
IP Rating
IP20
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2
Maximum Operating Temperature
140 Degrees F
Maximum Voltage Rating
690V AC
Electrical Operating Durability
100,000
Mechanical Operating Durability
100,000
Minimum Operating Temperature
-4 Degrees F

Description

Manual Starter 600Vac 63Amp Iec
