Shop SCHNEIDER ELECTRIC

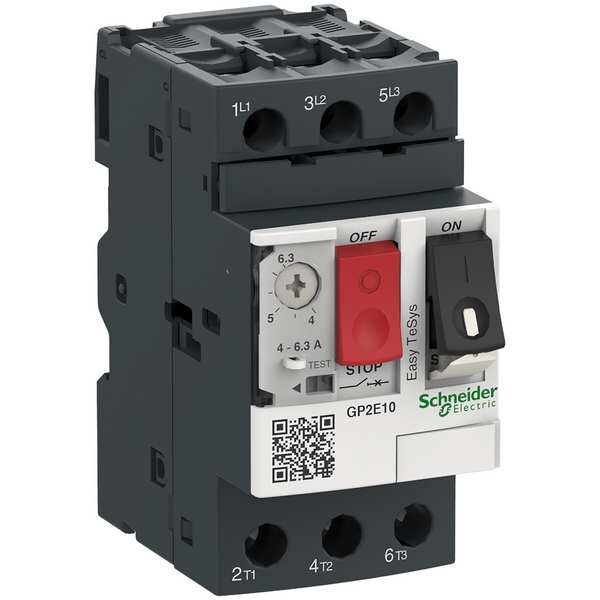

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 6.3 A

  • Mfr # GP2E10

  • Zoro # G503481150

product price:
$
66.69
/ea

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
6.3 A
Series
TeSys Easy
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
GP2E10
Zoro #
G503481150
UPC #
-
Country of Origin
Thailand
Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
6.3 A
Series
TeSys Easy
Standards
cUL, EN/IEC 60947-2, EN/IEC 60947-4-1, RoHS, UL 60947-4-1
Description/Special Features
Thermal-Magnetic Trip Unit Technology
HP @ 3 Phase - 460-575V
3 hp
HP @ 1 Phase - 230V
1/2 hp
HP @ 3 Phase - 575V
5 hp
Pilot Light
No
Phase Loss Sensitivity
Yes
Product Name
Easy TeSys GP2E
Maximum Operating Rate
25 cyc/h
Suitability For Isolation
yes IEC 60947-1
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Device Application
motor
Phase Failure Sensitivity
yes IEC 60947-4-1
Trip Unit Rating
4-6.3 A
Magnetic Tripping Current
78-78 A
Tightening Torque
1.7 N.m screw clamp terminals
Trip Unit Technology
thermal-magnetic
Rated Duty
continuous IEC 60947-4-1
Ik Degree Of Protection
IK04
Device Short Name
GP2E
Ambient Air Temperature For Storage
-40-80°C
Range
Easy TeSys
Network Type
AC
Operating Position
any position
Protective Treatment
TH
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Utilisation Category
AC-3 IEC 60947-4-1 || category A IEC 60947-2
Operating Altitude
6561.68 ft (2000 m)
Fire Resistance
960°C IEC 60695-2-1
Power Dissipation Per Pole
2.5 W
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-4 Degrees F
Minimum Overload Relay Current Setting
4 A
Maximum Voltage Rating
690V AC
Maximum Overload Relay Current Setting
6.3 A
Starter Style
IEC
Horsepower @ Single Phase - 240V AC
1/2 hp
IP Rating
IP20
Overload Protection Type
Thermal
Horsepower @ Three Phase - 600V AC
5 hp
Includes Pilot Light
No
Frequency
50/60 Hz
Horsepower @ Three Phase - 208V AC
1 hp
Horsepower @ Single Phase - 120V AC
1/4 hp
Terminal Connection Type
Screw Clamp Terminals
Mounting Style
DIN Rail
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
1 1/2 hp
Electrical Operating Durability
100,000
Resistance Properties
Fire Resistant
Horsepower @ Three Phase - 480V AC
3 hp
Mechanical Operating Durability
100,000
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1/4 hp, Horsepower @ Single Phase - 240V AC 1/2 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 6.3 A, Horsepower @ Three Phase - 208V AC 1 hp, Horsepower @ Three Phase - 240V AC 1 1/2 hp, Horsepower @ Three Phase - 480V AC 3 hp, Series TeSys Easy, Horsepower @ Three Phase - 600V AC 5 hp, Maximum Overload Relay Current Setting 6.3 A
