  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 1 A

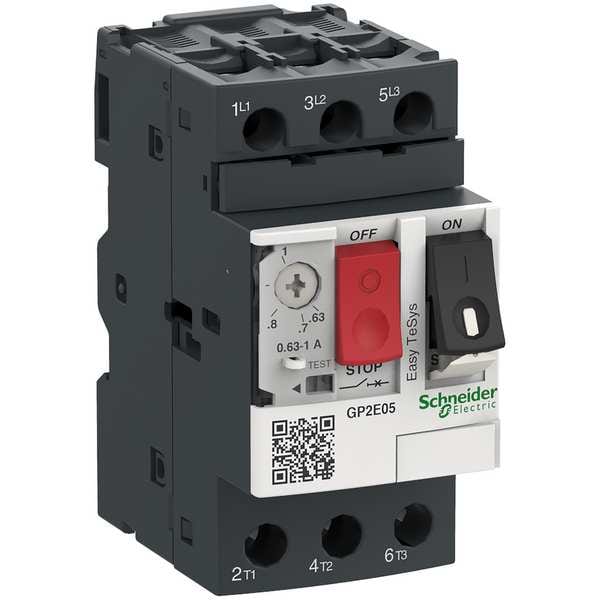

Schneider Electric Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 1 A GP2E05 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 1 A

  • Mfr # GP2E05

  • Zoro # G003481124

product price: $72.49
/ea
Sold in multiples of 24 for $1,739.76

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
1 A
Series
TeSys Easy
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GP2E05
Zoro #
G003481124
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Height
3.5 in
Overall Width
1.77 in
Mounting Hole Distance - Height
1.97 in
Overall Depth
3.09 in
Mounting Hole Distance - Width
1.38 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
1 A
Series
TeSys Easy
Standards
cUL, EN/IEC 60947-2, EN/IEC 60947-4-1, RoHS, UL 60947-4-1
Pilot Light
No
Phase Loss Sensitivity
Yes
HP @ 3 Phase - 575V
1/2 hp
Description/Special Features
Thermal-Magnetic Trip Unit Technology
Minimum Overload Relay Current Setting
0.63 A
Maximum Operating Temperature
140 Degrees F
Mounting Style
DIN Rail
Electrical Operating Durability
100,000
Starter Style
IEC
Frequency
50/60 Hz
Maximum Voltage Rating
690V AC
IP Rating
IP20
Horsepower @ Three Phase - 600V AC
1/2 hp
Resistance Properties
Fire Resistant
Mechanical Operating Durability
100,000
Minimum Operating Temperature
-4 Degrees F
Overload Protection Type
Thermal
Terminal Connection Type
Screw Clamp Terminals
Includes Pilot Light
No
NEMA Enclosure Rating
No Enclosure
Ik Degree Of Protection
IK04
Operating Altitude
6561.68 ft (2000 m)
Trip Unit Rating
0.63-1 A
Rated Duty
continuous IEC 60947-4-1
Fire Resistance
960°C IEC 60695-2-1
Magnetic Tripping Current
13-13 A
Phase Failure Sensitivity
yes IEC 60947-4-1
Product Name
Easy TeSys GP2E
Tightening Torque
1.7 N.m screw clamp terminals
Suitability For Isolation
yes IEC 60947-1
Device Application
motor
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 100% 500 V AC 50/60 Hz IEC 60947-2; 100% 690 V AC 50/60 Hz IEC 60947-2
Network Type
AC
Device Short Name
GP2E
Trip Unit Technology
thermal-magnetic
Power Dissipation Per Pole
2.5 W
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Utilisation Category
AC-3 IEC 60947-4-1 || category A IEC 60947-2
Ambient Air Temperature For Storage
-40-80°C
Range
Easy TeSys
Thermal Protection Adjustment Range
0.63 to 1 A
Protective Treatment
TH
Maximum Operating Rate
25 cyc/h
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Operating Position
any position

Description

Manual Motor Starter, NEMA Size Not Applicable, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 1 A, Series TeSys Easy, Horsepower @ Three Phase - 600V AC 1/2 hp, Maximum Overload Relay Current Setting 1 A, Minimum Overload Relay Current Setting 0.63 A, Mounting Style DIN Rail, NEMA Enclosure Rating No Enclosure, Number of Required Thermals Not Applicable, Overload Protection Type Thermal, Starter Style IEC
