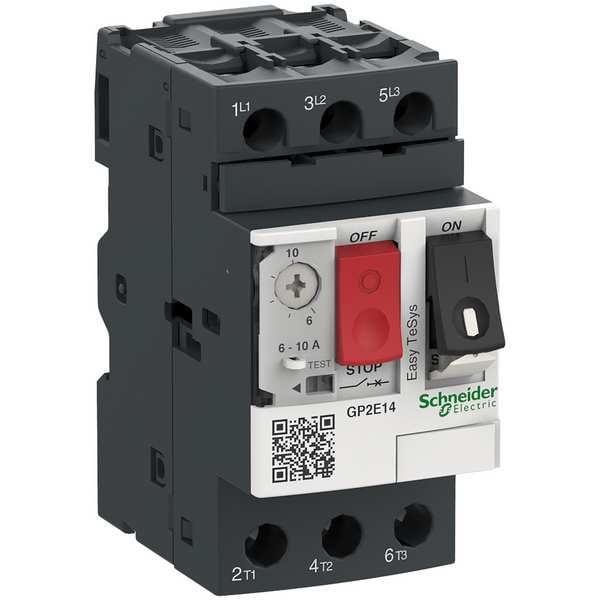

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 10 A

Mfr # GP2E14
Zoro # G203481139

65.29

Key Features

Number of Poles

Operator

Push Button

Phase

Current AC

10 A

Series

TeSys Easy

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: GP2E14
Zoro #: G203481139
UPC #: -
Country of Origin: Thailand

Dimensions

Overall Width: 1.77 in
Overall Height: 3.5 in
Mounting Hole Distance - Width: 1.38 in
Mounting Hole Distance - Height: 1.97 in
Overall Depth: 3.09 in

Details

Item: Manual Motor Starter
Number of Poles: 3
Operator: Push Button
Phase: 3
Current AC: 10 A
Series: TeSys Easy
Standards: cUL, EN/IEC 60947-2, EN/IEC 60947-4-1, RoHS, UL 60947-4-1
HP @ 3 Phase - 460-575V: 5 hp
Pilot Light: No
Description/Special Features: Thermal-Magnetic Trip Unit Technology
HP @ 3 Phase - 575V: 7 1/2 hp
Phase Loss Sensitivity: Yes
HP @ 1 Phase - 230V: 1 1/2 hp
Trip Unit Technology: thermal-magnetic
Ik Degree Of Protection: IK04
Phase Failure Sensitivity: yes IEC 60947-4-1
Product Name: Easy TeSys GP2E
Power Dissipation Per Pole: 2.5 W
Fire Resistance: 960°C IEC 60695-2-1
Operating Position: any position
Network Type: AC
Protective Treatment: TH
Trip Unit Rating: 6-10 A
Maximum Operating Rate: 25 cyc/h
Device Short Name: GP2E
Rated Duty: continuous IEC 60947-4-1
Suitability For Isolation: yes IEC 60947-1
Device Application: motor
Tightening Torque: 1.7 N.m screw clamp terminals
Magnetic Tripping Current: 138-138 A
[Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60947-2
Fixing Mode: 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Utilisation Category: AC-3 IEC 60947-4-1 || category A IEC 60947-2
Operating Altitude: 6561.68 ft (2000 m)
Ambient Air Temperature For Storage: -40-80°C
Range: Easy TeSys
Horsepower @ Three Phase - 480V AC: 5 hp
Horsepower @ Three Phase - 240V AC: 3 hp
Minimum Overload Relay Current Setting: 6 A
Minimum Operating Temperature: -4 Degrees F
Includes Pilot Light: No
Maximum Operating Temperature: 140 Degrees F
Maximum Voltage Rating: 690V AC
Overload Protection Type: Thermal
Horsepower @ Single Phase - 240V AC: 1 1/2 hp
Electrical Operating Durability: 100,000
IP Rating: IP20
Horsepower @ Single Phase - 120V AC: 1/2 hp
Mechanical Operating Durability: 100,000
Mounting Style: DIN Rail
NEMA Enclosure Rating: No Enclosure
Frequency: 50/60 Hz
Horsepower @ Three Phase - 600V AC: 7 1/2 hp
Resistance Properties: Fire Resistant
Starter Style: IEC
Maximum Overload Relay Current Setting: 10 A
Horsepower @ Three Phase - 208V AC: 2 hp
Terminal Connection Type: Screw Clamp Terminals
Rated Service Short-Circuit Breaking Capacity: 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1/2 hp, Horsepower @ Single Phase - 240V AC 1 1/2 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 10 A, Horsepower @ Three Phase - 208V AC 2 hp, Horsepower @ Three Phase - 240V AC 3 hp, Horsepower @ Three Phase - 480V AC 5 hp, Series TeSys Easy, Horsepower @ Three Phase - 600V AC 7 1/2 hp, Maximum Overload Relay Current Setting 10 A
