  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 23 A

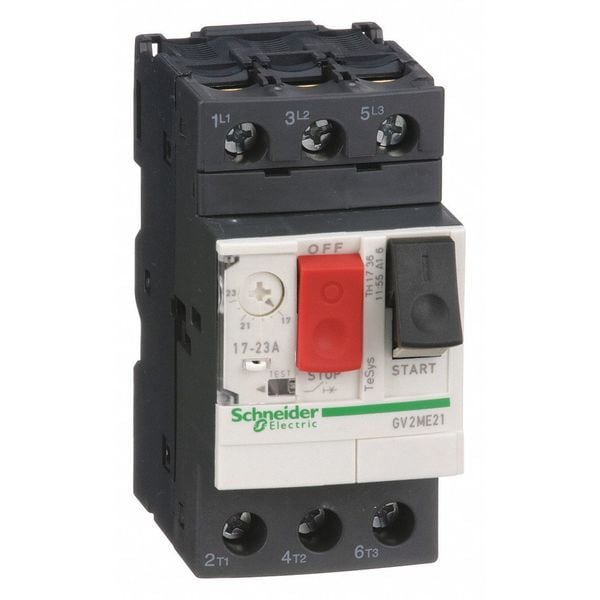

Schneider Electric Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 23 A GV2ME21 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 23 A

  • Mfr # GV2ME21

  • Zoro # G0718837

product price: $279.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
23 A
Series
TeSys Deca
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV2ME21
Zoro #
G0718837
UPC #
785901212010
Country of Origin
Thailand

Dimensions

Overall Width
1.77 in
Overall Depth
3.09 in
Overall Height
3.5 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
23 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
HP @ 1 Phase - 230V
3 hp
Phase Loss Sensitivity
Yes
HP @ 3 Phase - 575V
20 hp
Description/Special Features
Melting Alloy Thermal Overload, Single Unit
HP @ 3 Phase - 460-575V
15/20
Pilot Light
No
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Tightening Torque
1.7 N.m screw clamp terminal
Motor Power Kw
9-9 kW 400/415 V AC 50/60 Hz || 11-11 kW 500 V AC 50/60 Hz || 18.5-18.5 kW 690 V AC 50/60 Hz
Rated Duty
continuous IEC 60947-4-1
Climatic Withstand
IACS E10
Power Dissipation Per Pole
2.5 W
Phase Failure Sensitivity
yes IEC 60947-4-1
Device Application
motor protection
Color
dark grey
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Ik Degree Of Protection
IK04
Magnetic Tripping Current
327-327 A
Thermal Protection Adjustment Range
17-23 A IEC 60947-4-1
Ambient Air Temperature For Storage
-40-80°C
Network Type
AC
Operating Altitude
6561.68 ft (2000 m)
Range
TeSys Deca
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Product Name
TeSys GV2 || TeSys Deca
Trip Unit Technology
thermal-magnetic
Fire Resistance
960°C IEC 60695-2-11
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Device Short Name
GV2ME
Mechanical Operating Durability
100,000
Terminal Connection Type
Screw Clamp Terminals
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 208V AC
5 hp
Frequency
50/60 Hz
Starter Style
IEC
Overload Protection Type
Thermal
Horsepower @ Three Phase - 240V AC
7 1/2 hp
NEMA Enclosure Rating
No Enclosure
Minimum Operating Temperature
-4 Degrees F
Maximum Voltage Rating
690V AC
IP Rating
IP20
Minimum Overload Relay Current Setting
17 A
Horsepower @ Single Phase - 120V AC
1 1/2 hp
Includes Pilot Light
No
Horsepower @ Three Phase - 480V AC
15 hp
Resistance Properties
Fire Resistant
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Three Phase - 600V AC
20 hp
Electrical Operating Durability
100,000
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 40 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1 1/2 hp, Horsepower @ Single Phase - 240V AC 3 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 23 A, Horsepower @ Three Phase - 208V AC 5 hp, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 15 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 20 hp, Maximum Overload Relay Current Setting 23 A
