  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 25 A

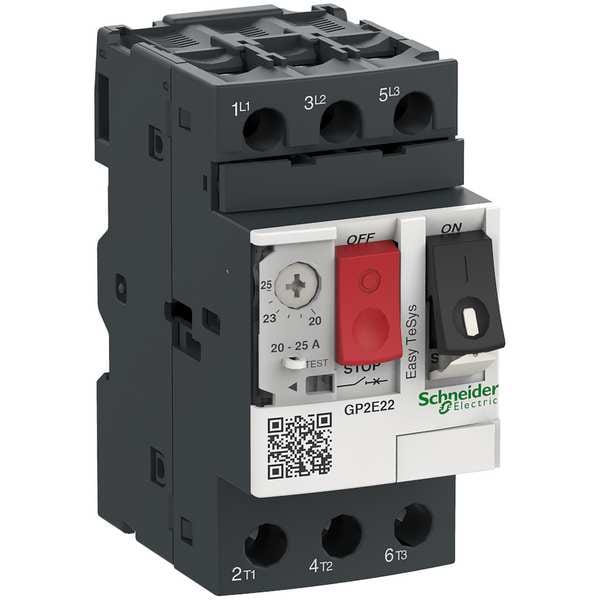

Schneider Electric Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 25 A GP2E22 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 25 A

  • Mfr # GP2E22

  • Zoro # G703481165

product price: $104.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
25 A
Series
TeSys Easy
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GP2E22
Zoro #
G703481165
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Width
1.77 in
Overall Height
3.5 in
Overall Depth
3.09 in
Mounting Hole Distance - Height
1.97 in
Mounting Hole Distance - Width
1.38 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
25 A
Series
TeSys Easy
Standards
cUL, EN/IEC 60947-2, EN/IEC 60947-4-1, RoHS, UL 60947-4-1
Pilot Light
No
HP @ 3 Phase - 575V
20 hp
Description/Special Features
Thermal-Magnetic Trip Unit Technology
HP @ 3 Phase - 460-575V
15 hp
Phase Loss Sensitivity
Yes
Magnetic Tripping Current
327-327 A
Power Dissipation Per Pole
2.5 W
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Trip Unit Technology
thermal-magnetic
Network Type
AC
Suitability For Isolation
yes IEC 60947-1
Utilisation Category
AC-3 IEC 60947-4-1 || category A IEC 60947-2
Trip Unit Rating
20-25 A
Operating Altitude
6561.68 ft (2000 m)
Operating Position
any position
Device Short Name
GP2E
Tightening Torque
1.7 N.m screw clamp terminals
Range
Easy TeSys
Ik Degree Of Protection
IK04
Phase Failure Sensitivity
yes IEC 60947-4-1
Device Application
motor
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Rated Duty
continuous IEC 60947-4-1
Maximum Operating Rate
25 cyc/h
Product Name
Easy TeSys GP2E
Fire Resistance
960°C IEC 60695-2-1
Protective Treatment
TH
Ambient Air Temperature For Storage
-40-80°C
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Minimum Operating Temperature
-4 Degrees F
Starter Style
IEC
Frequency
50/60 Hz
Mounting Style
DIN Rail
IP Rating
IP20
Minimum Overload Relay Current Setting
20 A
Overload Protection Type
Thermal
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 480V AC
15 hp
Horsepower @ Three Phase - 600V AC
20 hp
Maximum Voltage Rating
690V AC
Terminal Connection Type
Screw Clamp Terminals
Electrical Operating Durability
100,000
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Mechanical Operating Durability
100,000
Includes Pilot Light
No
Horsepower @ Single Phase - 120V AC
2 hp
Resistance Properties
Fire Resistant
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 40 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 25 A, Horsepower @ Three Phase - 208V AC 7 1/2 hp, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 15 hp, Series TeSys Easy, Horsepower @ Three Phase - 600V AC 20 hp, Maximum Overload Relay Current Setting 25 A, Minimum Overload Relay Current Setting 20 A, Mounting Style DIN Rail
