Shop SCHNEIDER ELECTRIC

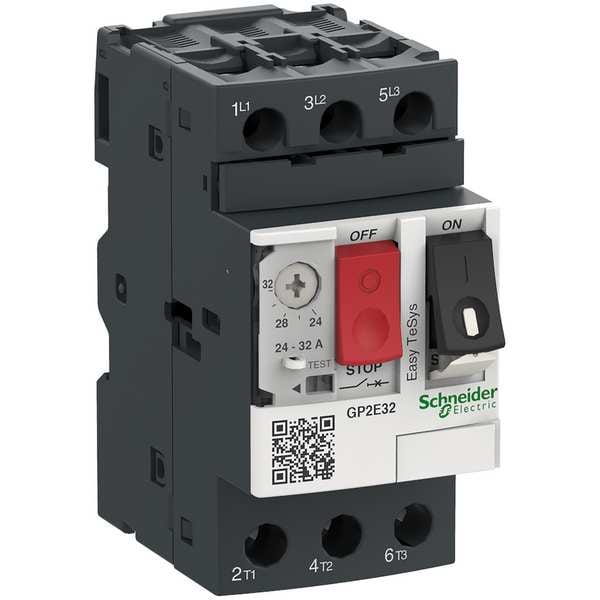

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 32 A

  • Mfr # GP2E32

  • Zoro # G903481231

product price:
$
107.99
/ea
Sold in multiples of 24 for $2,591.76
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
32 A
Series
TeSys Easy
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GP2E32
Zoro #
G903481231
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Width
1.77 in
Overall Height
3.5 in
Mounting Hole Distance - Width
1.38 in
Overall Depth
3.09 in
Mounting Hole Distance - Height
1.97 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
32 A
Series
TeSys Easy
Standards
cUL, EN/IEC 60947-2, EN/IEC 60947-4-1, RoHS, UL 60947-4-1
Pilot Light
No
HP @ 3 Phase - 575V
25 hp
Phase Loss Sensitivity
Yes
HP @ 1 Phase - 230V
6 hp
Description/Special Features
Thermal-Magnetic Trip Unit Technology
HP @ 3 Phase - 460-575V
20 hp
IP Rating
IP20
Maximum Overload Relay Current Setting
32 A
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
100,000
Minimum Operating Temperature
-4 Degrees F
Maximum Voltage Rating
690V AC
Terminal Connection Type
Screw Clamp Terminals
Starter Style
IEC
Resistance Properties
Fire Resistant
Includes Pilot Light
No
Horsepower @ Three Phase - 480V AC
20 hp
Electrical Operating Durability
100,000
Frequency
50/60 Hz
Minimum Overload Relay Current Setting
24 A
Mounting Style
DIN Rail
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 600V AC
25 hp
Overload Protection Type
Thermal
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Single Phase - 240V AC
5 hp
Product Name
Easy TeSys GP2E
Rated Duty
continuous IEC 60947-4-1
Device Short Name
GP2E
Range
Easy TeSys
Utilisation Category
AC-3 IEC 60947-4-1 || category A IEC 60947-2
Trip Unit Technology
thermal-magnetic
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Protective Treatment
TH
Phase Failure Sensitivity
yes IEC 60947-4-1
Network Type
AC
Fire Resistance
960°C IEC 60695-2-1
Maximum Operating Rate
25 cyc/h
Device Application
motor
Power Dissipation Per Pole
2.5 W
Tightening Torque
1.7 N.m screw clamp terminals
Ambient Air Temperature For Storage
-40-80°C
Operating Position
any position
Trip Unit Rating
24-32 A
Ik Degree Of Protection
IK04
Suitability For Isolation
yes IEC 60947-1
Magnetic Tripping Current
416-416 A
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Operating Altitude
6561.68 ft (2000 m)
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 50 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 5 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 32 A, Horsepower @ Three Phase - 208V AC 7 1/2 hp, Horsepower @ Three Phase - 240V AC 10 hp, Horsepower @ Three Phase - 480V AC 20 hp, Series TeSys Easy, Horsepower @ Three Phase - 600V AC 25 hp, Maximum Overload Relay Current Setting 32 A
