  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 6.3 A

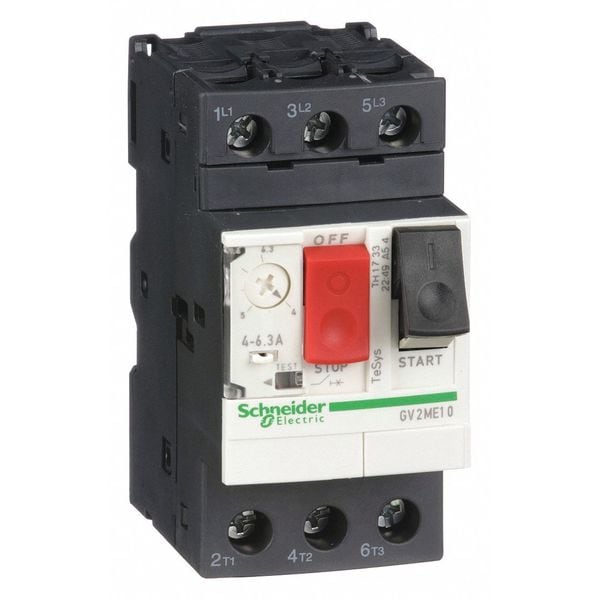

Schneider Electric Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 6.3 A GV2ME10 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Push Button, 6.3 A

  • Mfr # GV2ME10

  • Zoro # G2436962

product price: $224.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Push Button
Phase
3
Current AC
6.3 A
Series
TeSys Deca
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GV2ME10
Zoro #
G2436962
UPC #
785901211969
Country of Origin
Thailand

Dimensions

Overall Depth
3.09 in
Overall Width
1.77 in
Overall Height
3.5 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Push Button
Phase
3
Current AC
6.3 A
Series
TeSys Deca
Standards
ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
HP @ 3 Phase - 460-575V
3/5
Pilot Light
No
Phase Loss Sensitivity
Yes
Description/Special Features
Melting Alloy Thermal Overload, Single Unit
HP @ 1 Phase - 230V
1/2 hp
HP @ 3 Phase - 575V
5 hp
Magnetic Tripping Current
78-78 A
Device Application
motor protection
Suitability For Isolation
yes IEC 60947-1§ 7-1-6
Mechanical Robustness
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Ambient Air Temperature For Storage
-40-80°C
Network Type
AC
Thermal Protection Adjustment Range
4-6.3 A IEC 60947-4-1
Trip Unit Technology
thermal-magnetic
Tightening Torque
1.7 N.m screw clamp terminal
Climatic Withstand
IACS E10
Device Short Name
GV2ME
Motor Power Kw
2.2-2.2 kW 400/415 V AC 50/60 Hz || 3-3 kW 500 V AC 50/60 Hz || 4-4 kW 690 V AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Utilisation Category
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Fixing Mode
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Color
dark grey
Product Name
TeSys GV2 || TeSys Deca
Phase Failure Sensitivity
yes IEC 60947-4-1
Fire Resistance
960°C IEC 60695-2-11
Range
TeSys Deca
Power Dissipation Per Pole
2.5 W
Operating Altitude
6561.68 ft (2000 m)
Ik Degree Of Protection
IK04
Rated Duty
continuous IEC 60947-4-1
Includes Pilot Light
No
Horsepower @ Three Phase - 240V AC
1 1/2 hp
Maximum Operating Temperature
140 Degrees F
Electrical Operating Durability
100,000
IP Rating
IP20
Minimum Overload Relay Current Setting
4 A
Frequency
50/60 Hz
Resistance Properties
Fire Resistant
Terminal Connection Type
Screw Clamp Terminals
NEMA Enclosure Rating
No Enclosure
Minimum Operating Temperature
-4 Degrees F
Horsepower @ Single Phase - 120V AC
1/4 hp
Horsepower @ Three Phase - 208V AC
1 1/2 hp
Overload Protection Type
Thermal
Horsepower @ Single Phase - 240V AC
1/2 hp
Horsepower @ Three Phase - 600V AC
5 hp
Starter Style
IEC
Horsepower @ Three Phase - 480V AC
3 hp
Mechanical Operating Durability
100,000
Maximum Voltage Rating
690V AC
Rated Service Short-Circuit Breaking Capacity
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1/4 hp, Horsepower @ Single Phase - 240V AC 1/2 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 6.3 A, Horsepower @ Three Phase - 208V AC 1 1/2 hp, Horsepower @ Three Phase - 240V AC 1 1/2 hp, Horsepower @ Three Phase - 480V AC 3 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 5 hp, Maximum Overload Relay Current Setting 6.3 A
