Item

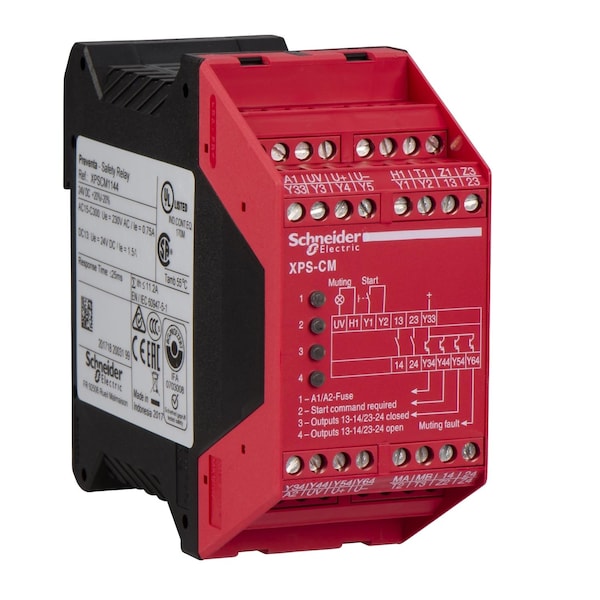

Safety Controller 300V 25A Preventa
Input Current
200 mA muting function
Input Voltage
24 V DCsensor, 24 V DC U+, U-)muting function
Breaking Capacity
20 mA 24 V solid state output, 1.5 A 24 V DC-13)50 ms relay output
Input Compatibility
XC limit switch muting function, XU2M18PP340... muting function, XU2S18PP340... (infrared) sensor, XU9M18PP340... muting function
Product or Component Type
safety module
Number of Additional Circuits
0
[Uimp] Rated Impulse Withstand Voltage
4 kV III DIN VDE 0110 parts 1 and 2, 4 kV III EN/IEC 60947-5-1
Power Consumption In W
15 W
Maximum Supply Current For Sensors
200 mA
Minimum Output Voltage
17 V relay output
Safety Module Application
for monitoring of single beam photo-electric sensor
Synchronisation Time Between Inputs
3 s +/- 20 %) for the activation of the MA/MB muting signal
[Us] Rated Supply Voltage
24 V DC - 20...20 %
Range of Product
Telemecanique Safety light curtains XUSL
Connections - Terminals
captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid or flexible without cable end, captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel, captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel, captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end, captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible without cable end, captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel, captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel
Protection Type
electronic internal fuse
Muting Maximum Duration
60 s - 10...30 %)
[Ui] Rated Insulation Voltage
300 V 2)DIN VDE 0110 parts 1 and 2, 300 V 2)EN/IEC 60947-5-1
Ambient Air Temperature For Storage
-25-85°C
Sensor Power Supply
U+, U- 24-24 V DC
Maximum Line Resistance
10 Ohm sensor power supply
Ip Degree of Protection
IP20 IEC 60529 terminals), IP40 IEC 60529 enclosure)
Function of Module
built-in muting
Number of Inputs
2 MA, MB)muting function, 4 Z1, Z2, Z3, Z4)sensor
Maximum Response Time On Input Open
25 ms
Output Thermal Current
5.6 A per relay, 11 A maximum
Local Signalling
1 LED electronic internal fuse status, 1 LED restarting, 1 LED safety outputs closed, 1 LED safety outputs open, 1 incandescent lamp muting 4-6.5 W
Safety Level
can reach category 2 with the appropriate control system and correctly wired EN/ISO 13849-1, can reach SILCL 1 with the appropriate control system and correctly wired EN/IEC 62061, can reach PL = c with the appropriate control system and correctly wired EN/ISO 13849-1
Output Type
relay 2 NO 13-14, 23-24), volt-free
Minimum Output Current
10 mA relay output
Ambient Air Temperature For Operation
-10-55°C
Associated Fuse Rating
4 A gG relay output DIN VDE 0660 part 200, 4 A gG relay output EN/IEC 60947-5-1, 6 A fast blow relay output DIN VDE 0660 part 200, 6 A fast blow relay output EN/IEC 60947-5-1
Number Of Inputs
2 MA, MB)muting function || 4 Z1, Z2, Z3, Z4)sensor
Ip Degree Of Protection
IP20 IEC 60529 terminals) || IP40 IEC 60529 enclosure)
Function Of Module
built-in muting
Number Of Additional Circuits
0
Product Or Component Type
safety module
