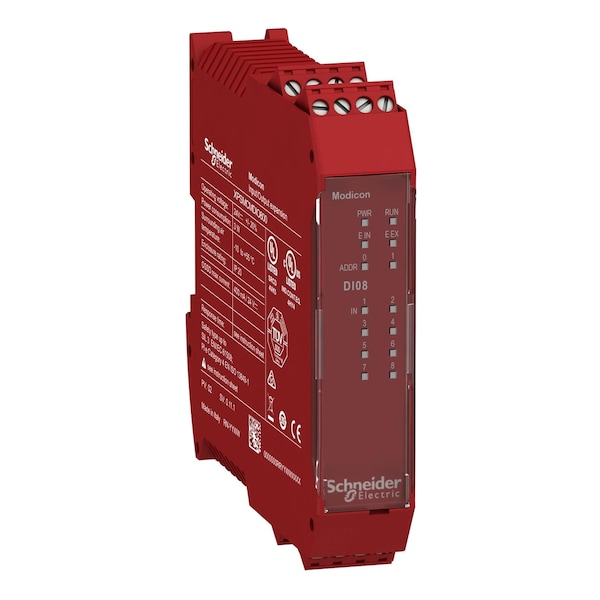

Schneider Electric Expansion module, Modicon MCM, 8 inputs, screw XPSMCMDI0800 - main

Expansion module, Modicon MCM, 8 inputs, screw

  • Mfr # XPSMCMDI0800

  • Zoro # G500422828

product price:  $328.99
/ea
Free Shipping & Returns

Key Features

Height
99 mm
Standards
IEC 62061 || EN/IEC 61508 || EN/ISO 13849-1 || EN/IEC 61800-5-1
Width
114.5 mm
Depth
22.5 mm
Integrated Connection Type
backplane expansion bus
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XPSMCMDI0800
Zoro #
G500422828
UPC #
-
Country of Origin
Italy

Dimensions

Height
99 mm
Width
114.5 mm
Depth
22.5 mm

Details

Item
With Te Screw Modules Inputs Expansion 8
Standards
IEC 62061 || EN/IEC 61508 || EN/ISO 13849-1 || EN/IEC 61800-5-1
Integrated Connection Type
backplane expansion bus
Connections - Terminals
2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block
Ambient Air Temperature For Storage
-20-85°C
Shock Resistance
10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
Ip Degree Of Protection
IP20 enclosure)
Quality Labels
CE
Number Of Terminal Blocks
4
Power Dissipation In W
3 W
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 61800-5-1
Product Or Component Type
safe input expansion module
Power Consumption In W
3 W
Number Of Inputs
8 digital
Insulation
250 V AC between power supply and housing EN/IEC 61800-5-1
Overvoltage Category
II
Device Short Name
XPSMCM
Cable Cross Section
0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
Number Of Outputs
4 test line control
Relative Humidity
10-95 %
Product Certifications
RCM || cULus || TUV
Electrical Connection
screw terminal
[Us] Rated Supply Voltage
24 V - 20...20 % DC
Safety Level
can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508 || SILCL 3 IEC 62061
Mounting Support
omega 35 mm DIN rail EN 50022
Discrete Input Voltage
24 V DC
Function Of Module
monitoring safety detection discrete input || monitoring safety dialogue discrete input
Discrete Output Type
PNP
Ambient Air Temperature For Operation
-10-55°C
Discrete Input Type
PNP
Pollution Degree
2
Vibration Resistance
+/-0.35 mm 10-55 Hz)EN/IEC 61496-1
Local Signalling
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 8 LEDs yellow IN input status
Electromagnetic Compatibility
electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3
Range of Product
Preventa Safety automation
Service Life
20 year(s)
Pvc Free
Yes

Description

With Te Screw Modules Inputs Expansion 8
