  5. Molded Case Circuit Breaker, POWERPACT B Series, 100A, 4 Pole, 347/600V AC, 25kA at 240V AC

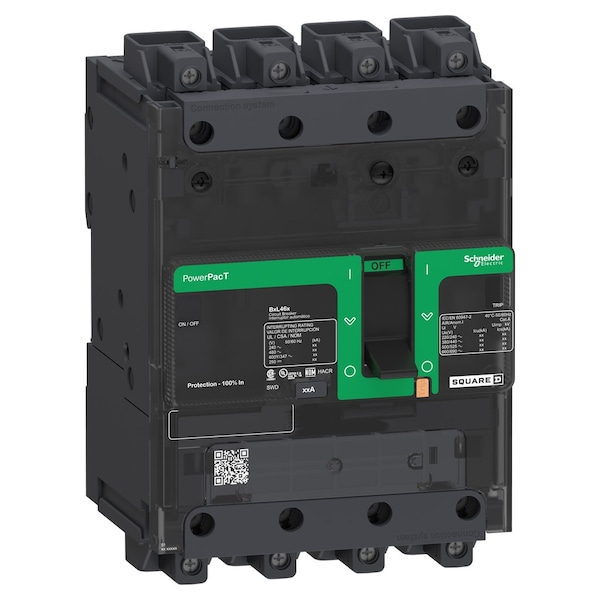

Schneider Electric Molded Case Circuit Breaker, POWERPACT B Series, 100A, 4 Pole, 347/600V AC, 25kA at 240V AC BDL46100 - main

Molded Case Circuit Breaker, POWERPACT B Series, 100A, 4 Pole, 347/600V AC, 25kA at 240V AC

  • Mfr # BDL46100

  • Zoro # G3982718

product price:  $1,554.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT B
Amps
100A
Number of Poles
4
AC Voltage Rating
347/600V AC
Circuit Breaker Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BDL46100
Zoro #
G3982718
UPC #
-
Country of Origin
Mexico

Dimensions

Frame Size
125A/B
Width
4-1/4 in
Depth
3-1/2 in
Height
5.39 in
Max. Wire Size
2/0 AWG (Cu/Al) Fine, 3/0 AWG (Cu/Al) Rigid
Min. Wire Size
6 AWG (Cu/Al) Fine, 14 AWG (Cu/Al) Rigid

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT B
Amps
100A
Number of Poles
4
AC Voltage Rating
347/600V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
25kA at 240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lugs
DC Voltage Rating
250V DC
Curve Type
B
Standards
UL, IEC, CCC, EAC, CSA, NOM, CE, NEMA
Features
Mercury Free; PVC Free
Interrupt Rating
25 kA at 208Y/120/220/240V AC, 14 kA at 500/525V AC, 18 kA at 380/415/440/480/277/600Y/347V AC, 10 kA at 250V DC
Color
Gray
Application
HACR rated Applications; Distribution

Description

PowerPact B Circuit Breaker,100A,4P,6
