Item

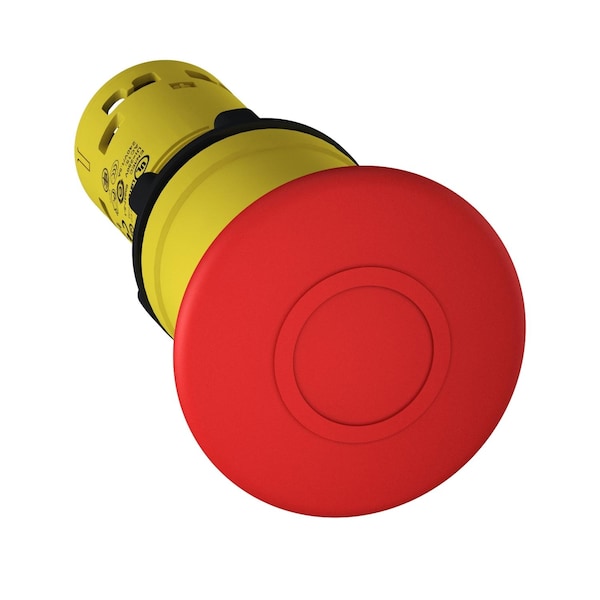

Estop Pushpull 1NO + 1NC
Standards
IEC 60364-5-53, IEC 60947-5-1, ISO 13850, IEC 60204-1, UL 508, IEC 60947-1, IEC 60947-5-5, CSA C22.2 No 14
Type of Operator
mechanical latching
Product or Component Type
emergency stop push-button
Fixing Center
>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
Positive Opening
with IEC 60947-5-1 appendix K
Ambient Air Temperature For Operation
-25-70°C
Ambient Air Temperature For Storage
-40-70°C
Electrical Durability
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
Shock Resistance
15 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Mechanical Durability
100000 cycles
Device Mounting
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
Operator Profile
red mushroom Ø 40 mm, unmarked
Terminals Description Iso N°1
(21-22)NC, (13-14)NO
Shape of Signaling Unit Head
round
Electrical Shock Protection Class
class II IEC 60536
Contact Operation
snap action
Range of Product
Harmony XB7
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Short-Circuit Protection
4 A cartridge fuse gG IEC 60947-5-1
Tightening Torque
0.8-1.2 N.m IEC 60947-1
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
Ip Degree of Protection
IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
[Ie] Rated Operational Current
0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1, 0.75 A 240 V, AC-15, C300 IEC 60947-5-1, 1.5 A 120 V, AC-15, C300 IEC 60947-5-1
Contacts Type And Composition
1 NO + 1 NC
Nema Degree of Protection
NEMA 12 UL 50, NEMA 3 UL 50
Fixing Mode
fixing nut beneath head 2-2.4 N.m
Device Presentation
monolithic product
Shape of Screw Head
cross JIS No 1, cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Electrical Reliability
λ < 5 x 10exp(-7) 17 V 5 mA IEC 60947-5-4
Shape Of Screw Head
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Nema Degree Of Protection
NEMA 12 UL 50 || NEMA 3 UL 50
Type Of Operator
mechanical latching
Product Certifications
GOST || CCC
Shape Of Signaling Unit Head
round
Ip Degree Of Protection
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Product Or Component Type
emergency stop push-button
