  15. Monolithic pilot light, Harmony XB7, plastic, green, 22mm, plain lens for BA9s bulb, lt 250V

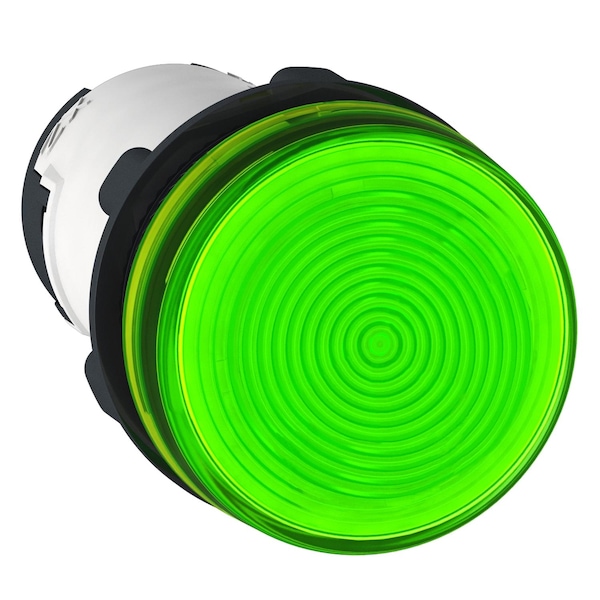

Schneider Electric Monolithic pilot light, Harmony XB7, plastic, green, 22mm, plain lens for BA9s bulb, lt 250V XB7EV63P - main

Monolithic pilot light, Harmony XB7, plastic, green, 22mm, plain lens for BA9s bulb, lt 250V

  • Mfr # XB7EV63P

  • Zoro # G000905555

product price: $18.89
/ea
Sold in multiples of 10 for $188.90

Key Features

Panel Cutout Diameter
22 mm
Head Color
Green
Terminal Connection
Screw Clamp
Standards
EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
Width
29 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB7EV63P
Zoro #
G000905555
UPC #
-
Country of Origin
Indonesia

Dimensions

Panel Cutout Diameter
22 mm
Width
29 mm
Height
29 mm
Depth
54 mm
Mounting Diameter
22 mm

Details

Item
Illuminated Push Button
Head Color
Green
Terminal Connection
Screw Clamp
Standards
EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
Device Mounting
fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-5-1
Signalling Type
steady
Ambient Air Temperature For Operation
-25-55°C
Fixing Mode
fixing nut beneath head 2-2.4 N.m
Connections - Terminals
Faston connectors 6.35 x 0.8 mm EN/IEC 60947-1 || forked type tag connectors 6.5 mm EN/IEC 60947-1 || screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Cap/Operator Or Lens Colour
green
Fixing Center
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Protective Treatment
TH
Shape Of Signaling Unit Head
round
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Device Presentation
monolithic product
Bulb Base
BA 9s
Shape Of Screw Head
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Terminals Description Iso N°1
(X1-X2)PL
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Nema Degree Of Protection
NEMA 12
Electromagnetic Compatibility
disturbing field emissionclass B EN 55011
Compatibility Code
XB7
Shock Resistance
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type
pilot light
Device Short Name
XB7
Overvoltage Category
class II IEC 60536
Ip Degree Of Protection
IP20 IEC 60529 rear face) || IP54 IEC 60529 front face)
Tightening Torque
0.8-1.2 N.m EN 60947-1
Light Source
incandescent (bulb not included)
[Us] Rated Supply Voltage
<= 250 V
Operator Additional Information
with plain lens
Light Block Supply
direct
Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Rated Supply Voltage
Less than or Equal to 250 V
Rated Insulation Voltage
250 V 3)IEC 60947-1
Range of Product
Harmony XB7

Description

This Harmony XB7, monolithic green pilot light does not include bulb and is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via BA9s base, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant thanks to its IP54, making it ideal for operation in low pressure environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
